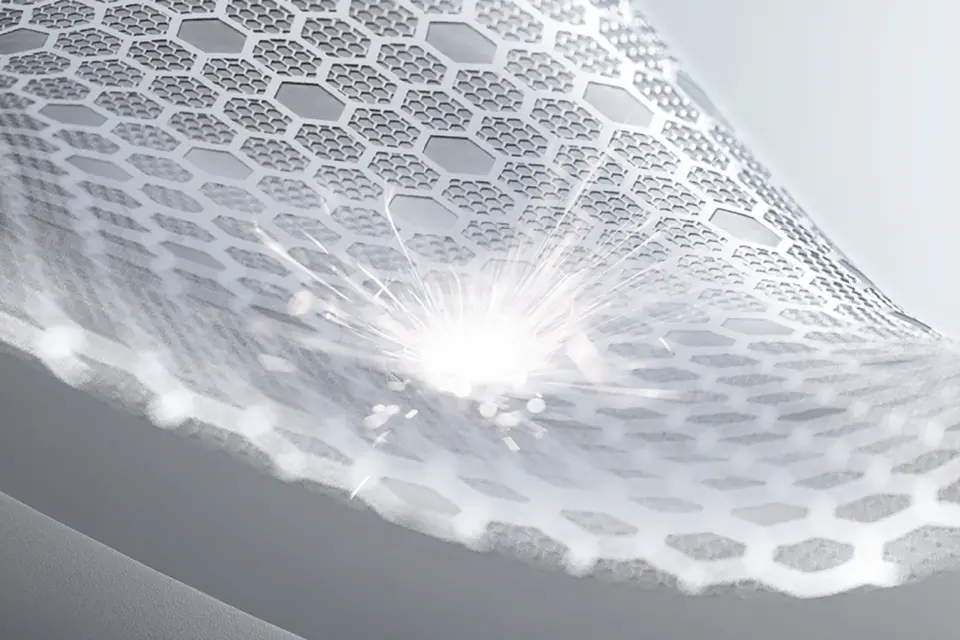

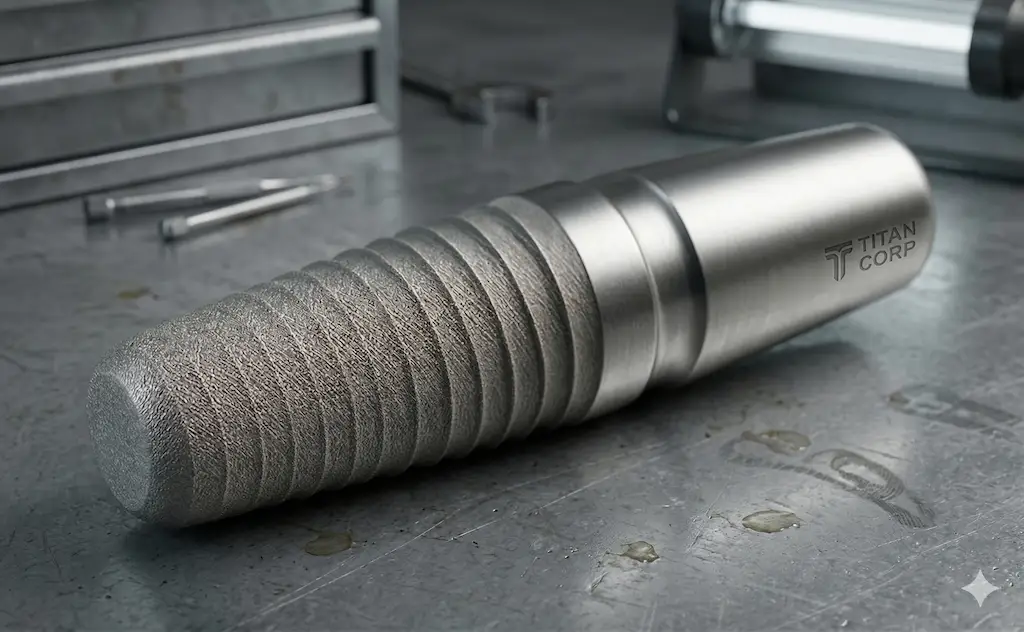

Laser texturing has emerged in recent years as the benchmark technique for controlled surface preparation of these components. Unlike sandblasting or traditional chemical treatments, it allows the geometry of the surface pattern to be programmed with sub-micrometric accuracy, replicated with deviations of less than 5 percent on each part, and each parameter to be auditorily documented. This paper discusses the physical mechanism of the process, relevant operational parameters, comparison with alternative technologies, and implications for regulatory validation.

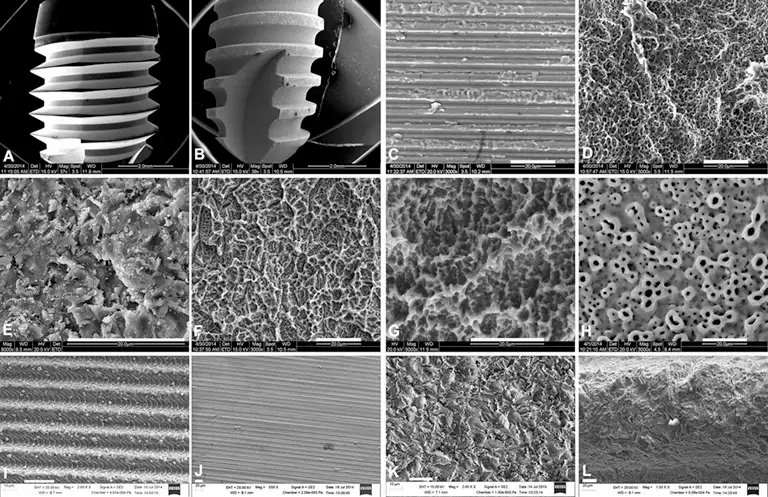

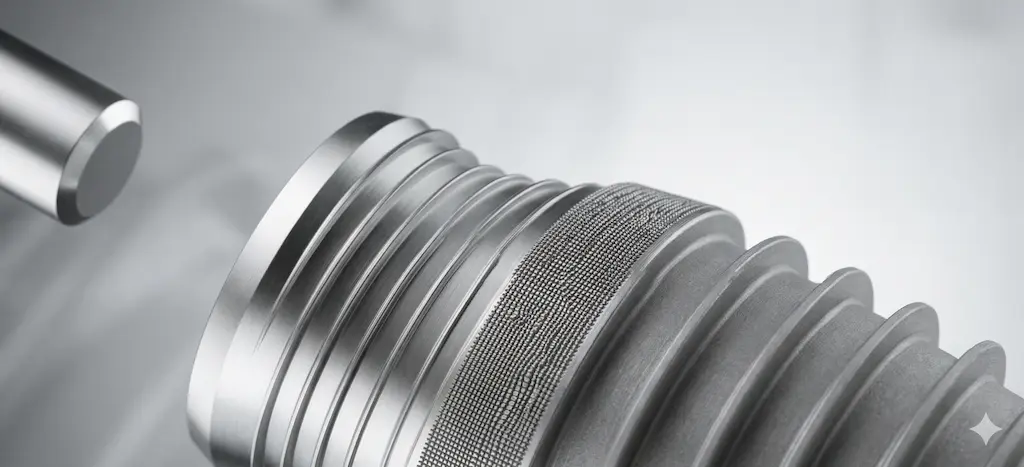

Micro- and Nano-Textures: Physical Mechanism and Effects on Wettability and Adhesion

The relationship between surface topography and adhesion is based on three competing phenomena: the increase inactual surface area, the change insurface energy (and thus the contact angle with adhesives and cements), and the contribution of mechanical anchorage of the polymer in microcavities. In laser texturing, all three are controlled independently through process parameters.

When a laser pulse hits a metal substrate, the irradiance-expressed in W/cm²-exceeds the material ablation threshold. For titanium grade 4 or grade 23 (Ti-6Al-4V ELI), this threshold is typically between 0.5 and 2 J/cm² in the ultrashort pulse regime (femtosecond or picosecond). The energy is absorbed almost instantaneously by the electron gas before it can diffuse to the crystal lattice: this allows the removal of material with a thermally altered zone (HAZ) contained within 1-5 µm, a critically lower value than nanosecond pulse lasers (typical HAZ: 20-80 µm).

The morphological result depends on the energy regime. At moderate fluences (0.5-2 J/cm²), laser-light-induced periodic structures-known as LIPSS (Laser-Induced Periodic Surface Structures) -are formed with periodicity in the 200-800 nm range, i.e., at the nanostructural scale. By increasing the fluence or overlapping multiple passes, microchannels, micropillars or grid patterns with characteristic sizes of 5-100 µm are obtained, which are suitable for mechanical anchoring of high-viscosity cements and adhesives.

The effect on wettability is straightforward: a polished titanium surface has water contact angles of 60-80°; after laser texturing with LIPSS structures, the angle drops to values below 10°, hydrophilic behavior that favors complete wetting by acrylic cements, epoxy resins, and osteoinductive primers. Incidentally, the same effect cannot be achieved by coarse blasting, which increases the average Ra roughness but does not change the nanoscopic structure of the surface.

Operational Parameters and Process Configuration

Defining the process for an implantable component starts with the choice of laser source. Today, picosecond pulse systems (pulse duration 1-50 ps) represent the optimal balance between thermal control and ablation rate for biomedical metals. Continuous wave or nanosecond lasers produce too much thermal energy for precision machining on thin titanium; femtosecond systems offer superior control but at significantly higher operating and purchasing costs.

The parameter that most influences final adhesion is the overlapbetween adjacent pulses (Overlap Rate), defined as the percentage of spatial overlap between consecutive spots. At overlap values above 80%, progressive ablation is generated, producing microchannels with controllable depths between 5 and 50 µm. Reducing the overlap to 20-40%, on the other hand, favors the creation of LIPSS structures without removing significant amounts of material, which is useful when the dimensional requirements of the part do not allow for thickness variations greater than 10 µm.

In processes on curvilinear housings or complex geometries-such as hip prosthesis bases or implantable sensor mounts-the galvanometric scanning head must be integrated with a 5- or 6-axis motion system, ensuring perpendicularity of the beam to the local surface within ±2°. Higher angles of incidence alter the ratio appearance of ablated structures and introduce variability in roughness that must be documented in the process control plan.

Comparison with Blasting and Chemical Treatments: Control, Repeatability, Environmental Impact

Sandblasting (sandblasting or grit blasting with Al₂O₃ or TiO₂ particles) is the historically most popular technique for surface preparation of prosthetic surfaces. Its main limitation is not the achievable roughness-which can reach Ra of 2-6 µm, overlapping with that of laser texturing-but theinability to control the pattern geometry. The statistical distribution of impacts generates isotropic and random morphologies that are difficult to reproduce from batch to batch. Pull-off test studies on cement-titanium interfaces show standard deviations of adhesive strength between 15 and 30 percent with conventional blasting, compared with 4 to 8 percent achievable with optimized laser texturing.

An additional problem with sandblasting is contamination by abrasive residue: Al₂O₃ particles embedded in the titanium surface can generate unwanted biological interference and complicate cleaning and sterilization protocols. X-ray Photoelectron Spectroscopy (XPS) analysis of sandblasted surfaces routinely reveals the presence of residual aluminum in the 0.5-2 at% band, a parameter that some Class III device regulations require to be explicitly monitored.

Chemical treatments – HF/HNO₃ attack, anodizing, hydroxyapatite coating deposition – offer excellent control of surface chemistry but require management of graded wastes, disposal infrastructure, and cycle times of 30-120 minutes per part. In a typical low-to-medium volume production environment for implantable devices (100-10,000 parts/year per custom facility), laser texturing reduces the cost of surface preparation by 40-60% compared to full chemistry supply chain while eliminating environmental compliance costs associated with the use of strong acids.

The combination of laser texturing + light chemical treatment (e.g., dilute acid cleaning post-texturing to remove annealing oxides) is now the configuration adopted by several orthopedic implant manufacturers for HA (hydroxyapatite) coating applications: the laser micro-structure acts as a substrate anchor, while the chemical treatment optimizes the chemical biocompatibility of the surface. In this hybrid configuration, the sequence and parameters of each step must be defined in the Design History File (DHF) and validated separately.

Regulatory Aspects and Validation: Testing, Documentation and Audit Trail

For implantable medical devices, surface preparation is not a secondary process parameter: it is an integral part of the device design and is subject to the process control requirements set forth in ISO 13485:2016, with direct implications for Section 7.5 (Manufacturing and Service Delivery) and nonconformity management. Laser texturing, as a special process-a process whose output cannot be fully verified by subsequent inspection-requires qualification of the process itself before mass production begins.

Process validation typically follows the IQ/OQ/PQ (Installation Qualification, Operational Qualification, Performance Qualification) scheme. The OQ phase, in particular, defines the critical process parameters (CPPs) and their acceptable operating range: for laser texturing, CPPs include fluence per pulse, repetition rate, scan rate, and pitch between rows. The PQ demonstrates that, by keeping the CPPs within the defined ranges, the critical quality characteristic (CQC)-typically the interface detachment resistance, expressed in MPa-meets the specified acceptance criteria.

Test of Resistance to Detachment (Pull-Off and Lap Shear)

Pull-off (ISO 4624 standard) and lap shear (ASTM D1002 or ASTM F2255 for medical applications) tests are the most widely used methods for quantifying adhesion at the laser-textured interface. Typical shear strength values for textured titanium-cement zinc oxide-ugenol interfaces are between 12 and 22 MPa, compared with 6 to 10 MPa for uncontrolled sandblasted surfaces. For medical titanium-epoxy interfaces, laser texturing can bring the tensile strength up to 30-40 MPa, a value generally sufficient for structural applications of implantable sensors with maximum loads of 20-25 N.

A frequently underestimated aspect of test planning is pre-test thermal cycling: specimens should undergo sterilization simulation (autoclave 121°C, 15 min, 3 cycles; or ETO sterilization according to ISO 11135) before pull-off tests are performed, as thermal cycling changes the rheological properties of adhesives and can reduce interface strength by 10-25% compared to unsterilized specimens. Including this step in PQ testing protocols is essential to avoid post-market nonconformities.

Roughness Control and Surface Characterization

Metrological characterization of the textured surface includes measurement of roughness parameters according to ISO 25178 (for 3D surface) or ISO 4287 (2D profile). Benchmarks for adhesion applications are Ra (arithmetic mean roughness), Rz (mean height of irregularities), and the Developed Interfacial Area Ratio (Sdr) parameter, which quantifies the percent increase in true area over projected area. An Sdr between 80 and 200% indicates a surface with significant texture without excessive re-entrant areas that could trap gas during adhesive application.

For audit documentation, each batch of textured components must be accompanied by a metrology report that includes: roughness measurements on representative control samples (minimum 3 measurements per textured zone), SEM images at 500x and 2000x for qualitative assessment of morphology, and the process log with all CPP parameters with certified timestamping. Systems such as those developed by LASIT for medical applications integrate document management directly into machine control software, automatically generating traceability reports that comply with 21 CFR Part 11 requirements for the FDA market and EU Regulation 2017/745 (MDR) for the European market.

Operational Challenges and Best Practices in Medical Laser Texturing

The main operational criticality in the texturing of implantable components is the management of residual thermal deformation on thin geometries. Components with wall thicknesses less than 0.5 mm (common in porous titanium spinal cages or capsulated sensor housings) can suffer appreciable distortion if the process is not optimized to reduce cumulative heat input. The standard solution involves pattern interleaving: instead of texturing by continuous passes, processing areas are distributed in a discontinuous sequence, allowing each area to cool before returning.

A second critical point is post-process cleaning. Sublimation of metal during ablation generates nanoscale particulate matter that partially redeposits on the textured surface. If not removed, this particulate can interfere with the quality of adhesion and, in medical settings, poses an unacceptable biohazard. Standard cleaning protocol includes ultrasonic rinsing in organic solvent (isopropanol or USP-grade acetone), followed by rinsing in deionized water and drying in nitrogen flow. The effectiveness of cleaning should be verified by EDX or TOF-SIMS analysis on OQ samples.

In LASIT’s accumulated experience on orthopedic and implantable sensor applications, a recurrent mistake in the process design phase is defining the texturing pattern without considering the rheology of the application adhesive. A parallel microchannel pattern oriented perpendicular to the direction of shear maximizes lap shear strength, but if the channel is too narrow (< 10 µm) relative to the cement filler particle size, the adhesive does not penetrate completely and the resulting strength is lower than that of a surface with coarser isotropic roughness. Pattern design should always start from the rheological specifications of the adhesive.

Implementation in Production: Integration into the Manufacturing Flow

Integrating laser texturing into a production line for implantable medical devices requires a preliminary assessment of step placement in the manufacturing flow. Texturing should be performed after stock removal machining (turning, milling, EDM) and before finishing surface treatments (anodizing, HA coating). In this placement, the surface is already at the final geometry and the risk of damaging the texture in subsequent operations is minimal.

For medium to high throughputs (more than 500 parts/month), the automated cell configuration with loading/unloading robots is justified by the required positioning repeatability: variations in part position greater than ±50 µm from the programmed reference alter the pattern depth and geometry in a statistically significant way. Integrated vision systems for automatic datum search-available in advanced configurations of industrial laser systems-reduce this error to below 15 µm without requiring dedicated fixtures.

Process documentation is, in this context, an equally important integration element as the hardware. Each machine must be able to generate process records by individual part (or batch) that include: laser CNC program identifier, CPP parameters with measured vs. nominal values, date and time of machining, and operator or robot identifier. This information must flow automatically into the company’s MES or ERP system to ensure full traceability required by ISO 13485 and notified body audit standards.

Final Considerations

Laser texturing today represents the most technically mature solution for controlled surface preparation of implantable components intended for adhesive applications. The ability to design the surface pattern according to the rheology of the adhesive, replicate it with less than 8 percent repeatability, and document every parameter in an auditable format structurally distinguishes it from sandblasting and chemical treatments, not only in terms of adhesive performance but in terms of process governability in a regulatory context.

For medical R&D teams approaching this technology, the most efficient path starts with defining the target CQCs (release strength in MPa) and rheological characterization of the application adhesive, and then retroactively designing the pattern and process parameters. IQ/OQ/PQ validation, if planned from the beginning of the project, is not an additional burden but a methodological framework that accelerates entry into mass production and reduces the risk of post-market revisions.

The post Laser Texturing for Implantable Components: Micro-Surface Texture and Adhesion in Medical Applications appeared first on LASIT - Laser marking.

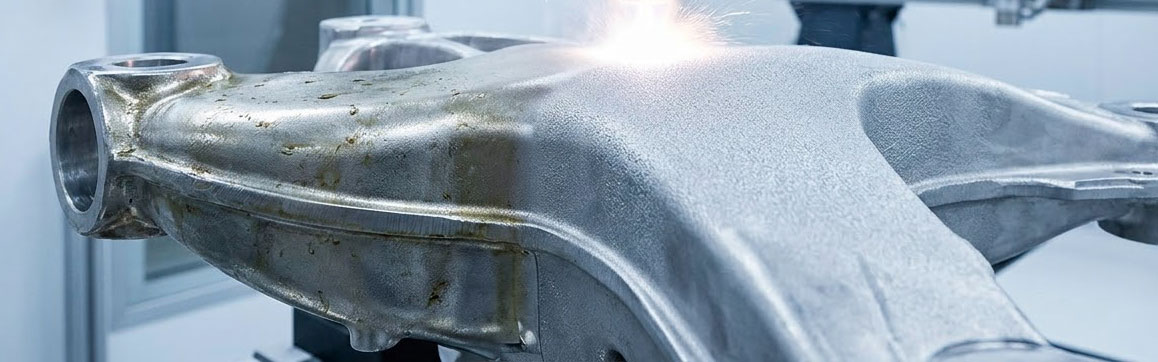

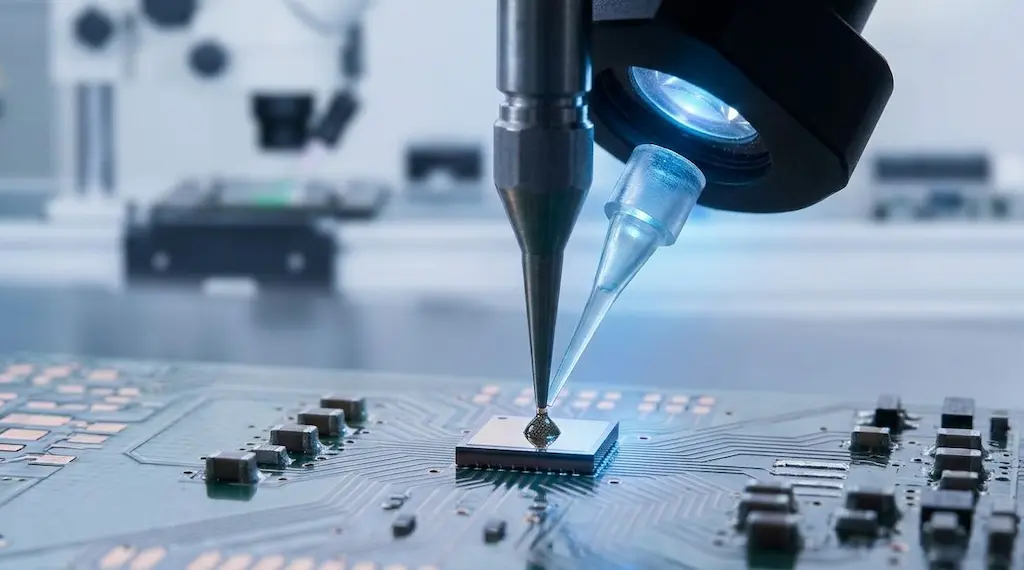

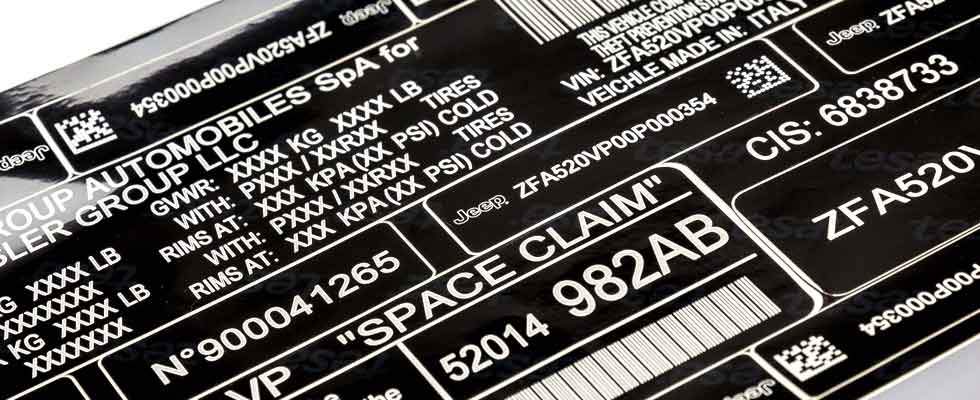

This article analyzes adhesive bonding as an engineering technology: from bond chemistry to operational configurations, from adhesive system selection to surface preparation-including the increasingly important role of laser treatment-to joint qualification. The goal is to provide process engineers with the conceptual tools to design reliable and repeatable joints in high-volume production.

Adhesive Bonding: Definition and Types of Technical Adhesives

Adhesive bonding refers to any joining process in which a cured material-the adhesive-transmits mechanical loads between two substrates without changing their structure or requiring localized heat. The definition hides a very wide variety of chemical and physical systems, each with precise application windows.

Liquid structural adhesives and pastes include single- and two-component epoxies, polyurethanes, acrylics, and high-strength silicones. These systems are applied by robotic dosing or manual dispensing and develop mechanical strength through a chemical reaction (polymerization). Typical shear strength values for lap joints vary between 15 and 45 MPa for structural epoxies, with elastic moduli in the range of 2-10 GPa.

Adhesive tapes and films allow extremely controlled adhesive thicknesses (25 to 500 µm) and lend themselves to automation in applications where the joint geometry is regular. Oven-cured epoxy adhesive films-common in aerospace-achieve interlaminar shear strengths in excess of 50 MPa at 23°C. In contrast, pressure-sensitive double-sided adhesive (PSA) tapes occupy the non-structural or semi-structural application band, with bond strengths typically less than 5 N/cm², but with the advantage of requiring no cure cycle.

Key Applications: Automotive Electrical, Electronics and Medical

The industry that has most rapidly transformed its joining strategy is the automotive electric industry. In next-generation Battery Electric Vehicles (BEVs), battery modules require the encapsulation of cells using thermally conductive adhesives (Thermal Interface Materials, TIM) with conductivities between 1 and 6 W/m-K, combined with structural adhesives to mechanically attach the pack to the casing. The criticality is twofold: ensuring the thermal transmission necessary to keep the cells in the optimal operating range (generally 20-40°C) and absorbing the cyclic deformations generated by cell expansion. Bonding to anodized aluminum or primed surfaces requires rigorous control of surface preparation, to which we will return.

In the electronics industry, underfill for die packaging, isotropic conductive adhesives (ICAs) and die-attach for power components represent applications where the size scale drops to a few µm and tolerance on wetting angle becomes critical. An epoxy die-attach with high thermal conductivity (10-25 W/m-K with silver fillers) must provide a uniform bondline thickness (BLT) typically in the range of 20-80 µm, with variations of less than ±5 µm so as not to compromise the thermal management of the device.

In the medical field, ISO 10993 (biocompatibility) regulatory requirements and cleaning specifications dictate the use of adhesive systems certified for contact with tissue or body fluids. UV-curing acrylic-based adhesives are prevalent in the assembly of microfluidic and catheter devices, where substrate transparency to UV is a prerequisite and cure times of less than 30 seconds are necessary for line productivity.

How Adhesion Works: Mechanisms of Cross-linking and Physical Systems

Chemically cross-linked adhesives

Crosslinking is the process by which the polymer chains of the adhesive form three-dimensional covalent bonds, transforming a viscous liquid into a solid with defined mechanical properties. The three main modes of activation are thermal reaction, UV/visible photopolymerization, and mixing of two reactive components.

In single-component thermal epoxies, the catalyst (typically a latent amine or imuridazole) is activated when a thermal threshold, generally between 80°C and 180°C, is exceeded. The time-temperature profile of the cure cycle determines the crosslinking density, glass transition temperature (Tg) and final elastic modulus. A Tg of 120°C is considered the minimum acceptable for automotive applications subject to severe thermal cycling. UV-curing adhesives convert photon energy into radicals or cations that initiate polymerization: irradiation intensities above 100 mW/cm² allow complete cures in 1-5 seconds, but require at least one of the substrates to be transmissive at the activation wavelength (usually 365 nm or 405 nm).

Two-component (2K) systems mix resin and hardener in a controlled stoichiometric ratio immediately before application. Pot life varies from a few minutes for quick cure systems to several hours for high-viscosity formulations intended for large area joints. Robotic metering with static mixers ensures mixing ratio with tolerances less than ±2%, which is critical in order not to degrade the final mechanical properties.

Solvent and pressure-sensitive adhesives

Solvent-based adhesives develop resistance by carrier evaporation: removal of the solvent concentrates polymer chains and activates intermolecular forces. Their use is declining sharply in industrial applications due to VOC regulations (Directive 2010/75/EU), but they remain in niches where capillary penetration of the solvent is functional for adhesion, such as in membrane bonding to porous substrates. Pressure-sensitive adhesives (PSAs) do not polymerize: their adhesion is entirely viscoelastic in nature, with the contribution of instantaneous wetting (adhesion) and internal cohesion forces (peel strength). Tack, a measure of instantaneous contact, is governed by low-frequency viscosity, while shear strength is determined by the elastic component-a balance that formulators optimize through the choice of glass transition temperature of the base polymer (typically between -20°C and -40°C for water-based acrylic PSAs).

Advantages Compared with Welding and Mechanical Fasteners

Comparing joining technologies cannot be reduced to a general ranking-each method has areas in which it is optimal. However, adhesive bonding has structural advantages in specific situations that it is useful to identify precisely, to avoid both over-engineering and underestimation of its capabilities.

In terms of mechanical behavior, the adhesive joint distributes the load uniformly over the entire bonded surface, eliminating stress concentration points typical of bolted or riveted joints. This results in 30-50% higher fatigue strength than riveted overlapped joints with equivalent cross-sectional strength, a fact documented in aviation applications on 2024-T3 aluminum structures. Welding, while efficient for static loads, introduces a thermally altered zone (HAZ) that can reduce the local strength of the base material by up to 60% in high-strength aluminum.

From a structural weight point of view, an adhesive joint on a 25 mm flange with 12.5 mm overlap adds less than 5 g/m of joint, compared to the 20-80 g/m typical for a riveted flange with 25 mm pitch. In a BEV architecture where the battery pack can have dozens of meters of longitudinal joints, this difference translates into real weight reductions in the kilogram range-relevant to vehicle range. The integrated environmental sealing benefit is equally real: a continuous adhesive joint eliminates the need for separate sealing beads, reducing process steps and potential seepage points.

The Critical Factor: Surface Preparation and Treatment Methods.

Premature failure of an adhesive joint is in almost all cases attributable to inadequate surface preparation. Optimal adhesion is achieved when three conditions coexist: absence of contaminants (oils, release agents, weak oxides), sufficient mechanical roughness to ensure physical anchorage and interlocking, and a substrate surface energy greater than the surface tension of the adhesive-a necessary condition for complete wetting.

Chemical cleaning with solvents or alkaline solutions effectively removes oils and greases, but does not change surface topography or stably increase surface energy. Mechanical abrasion (sandblasting, brushing) increases Ra roughness from typical values of 0.1-0.5 µm on polished aluminum to 2-8 µm, significantly improving physical anchorage. However, it introduces abrasive contaminants and is not repeatable with the accuracy required by high-volume in-line processes.

Laser surface preparation (LSP) treatment has gained industrial relevance precisely to overcome these limitations. A pulsed laser beam-typically Nd:YAG or fiber at 1064 nm-removes surface contaminants and brittle oxide films by ablation, generates controlled micro-topography, and chemically activates the surface by increasing surface energy. In our experience with automotive applications, laser treatment on AA6061 aluminum prior to structural bonding increased the shear strength of the joint by 35-60% compared to cleaning with IPA alone, with dispersion of results reduced to less than half due to the repeatability of the laser process compared to manual abrasion.

The key parameters of SMP are fluence (energy per unit area, typically 0.5-3 J/cm²), repetition rate (1-100 kHz), scan rate, and number of passes. Varying the fluence allows one to go from simple surface cleaning (< 0.8 J/cm²) to controlled microabrasion (1-2 J/cm²) to creating deep anchor structures (> 2 J/cm²). On carbon-reinforced substrates (CFRP), control is even more critical: fluence must remain below the threshold of fiber damage (about 1.5 J/cm² for epoxy CFRP at 1064 nm), but be sufficient to remove the surface resin film that would otherwise prevent adhesion to the fibers themselves.

Plasma treatment and chemical functionalization (silane primers, chromate-free conversion coatings) complete the panorama of available solutions. Epoxy primers, applied in 5-15 µm layers, perform a chemical coupling function between metal substrate and adhesive, improving joint durability in wet environments. The choice between these approaches depends on component geometry, production volume, and process traceability requirements-factors that in series production are systematically evaluated during PFMEA qualification.

Adhesive Joint Qualification: How to Test Strength and Optimize the Process

Standard mechanical tests

Mechanical characterization of an adhesive joint follows standardized protocols that should be known in order to correctly interpret vendor datasheets and design acceptance plans. The lap shear test on an overlapping joint (lap shear test, ISO 4587 or ASTM D1002) is the most common measurement: two bonded substrates over a defined overlap area (typically 12.5 × 25 mm) are axially loaded to failure. The result-expressed in MPa-describes the strength of the joint, but includes peeling effects at the ends of the overlap that make the figure dependent on the geometry of the specimen and the stiffness of the substrates.

The perpendicular tensile test (tensile butt joint, ISO 6922) measures the separation strength normal to the joint plane, a relevant value for joints subjected to peel or cleavage loads. Typical values for structural epoxy adhesives on blasted steel range between 25 and 60 MPa. For dynamic applications, fatigue tests according to ISO 9664 (cyclic shear) define the joint strength limit under oscillating loads-usually performed at R = 0.1 with frequencies between 1 and 50 Hz.

Yield analysis and process feedback

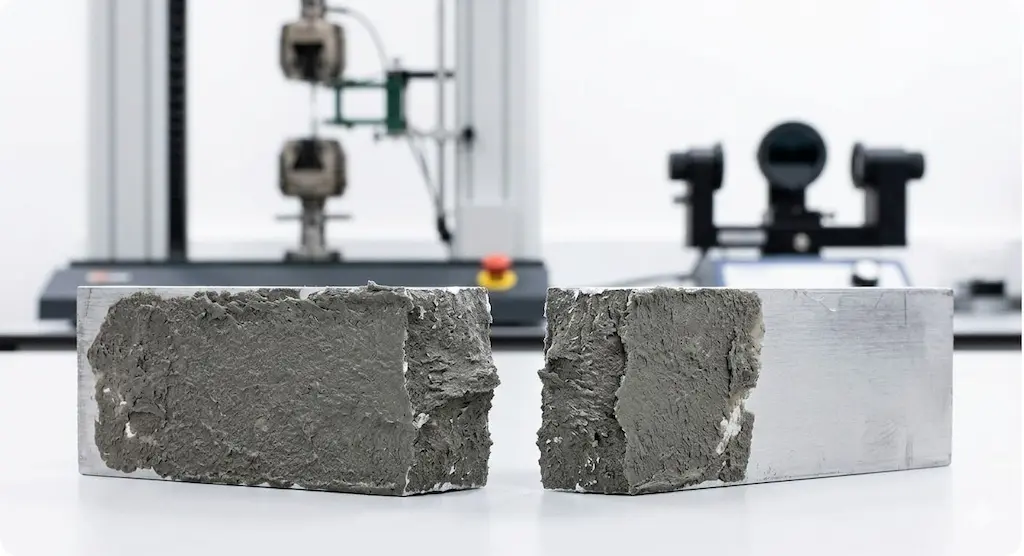

The most useful information from a failure test is not the maximum load value, but the type of failure. An adhesive failure–clear separation at the substrate-adhesive interface with a clean surface–indicates a surface preparation or wetting problem. A cohesive failure-breaking internal to the adhesive layer with residue on both surfaces-indicates that the joint has made maximum use of the interface and the limit is the inherent strength of the adhesive: this is the ideal condition for structural joints. Substrate failure (failure of the base material before the joint) indicates that the design has fully optimized the joint, a desirable condition in lightweight components.

Systematic correlation between failure type and process parameters-cure temperature, surface treatment energy, bondline thickness, relative humidity during application-is the basis of a robust qualification process. In plants with high production cadences, this correlation is managed via Statistical Process Control (SPC) on verifiable inline process parameters (e.g., adhesive contact angle on the treated substrate, measured with an inline integrated optical goniometer) as a proxy for joint quality, without having to destroy components in production.

Conclusions: Design for Reliability, Not for Endurance

Adhesive bonding is a mature technology, but its successful implementation requires an integrated understanding of polymer chemistry, surface tribology and joint mechanics. The tendency to select an adhesive based only on the shear strength stated in the datasheet-while ignoring surface preparation, bondline thickness control, and management of the application environment-is the main cause of failures in serial production.

The three variables on which to focus optimization are the quality and repeatability of surface preparation, control of the cure cycle (time, temperature, clamping pressure), and characterization of failure as a continuous feedback tool. Laser treatment is now one of the most reliable approaches for the first variable in high-volume environments because of its inherent digital traceability and ability to integrate the process in-line without introducing additional chemical agents.

To learn more about how to configure an optimal laser processing system for your bonding line, the LASIT team is available for a technical analysis of your specific application.

The post Industrial Adhesive Bonding: Technology, Applications and Process Optimization appeared first on LASIT - Laser marking.

MDR 2017/745 regulations in Europe and FDA’s 21 CFR Part 820 in the United States require Class II medical device manufacturers to adopt verifiable Unique Device Identification (UDI) systems throughout the supply chain. Applying an identification code to a thin, transparent, curvilinear, thermosensitive component such as a PETG or thermoplastic polyurethane aligner rules out a priori contact marking technologies and inkjet systems subject to uncertain adhesion and durability. The UV laser, with its ability to induce localized chemical changes without generating macroscopic heat, is now the most reliable technological answer to this need.

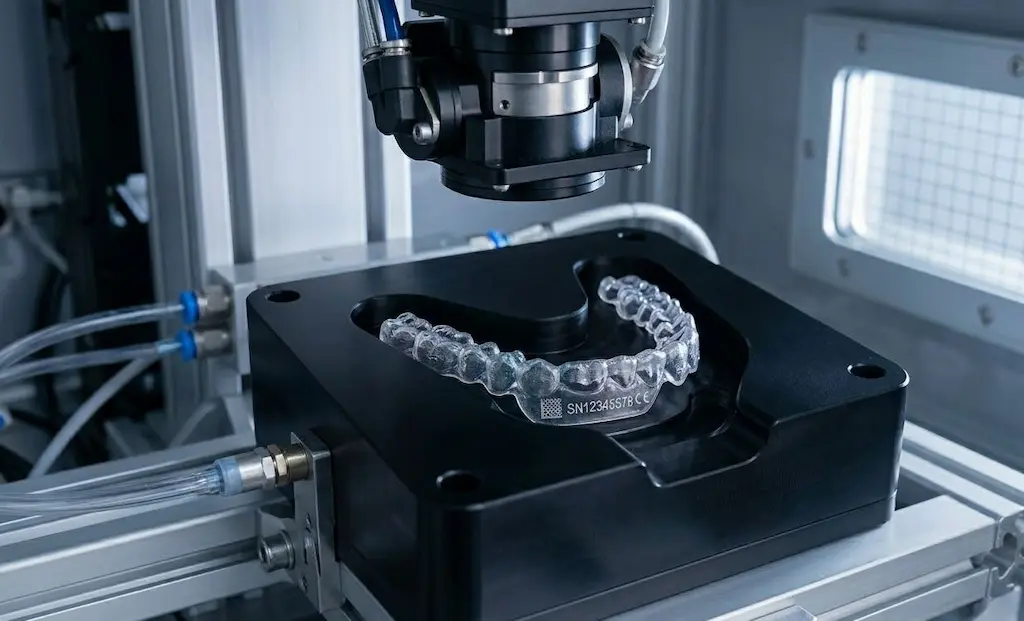

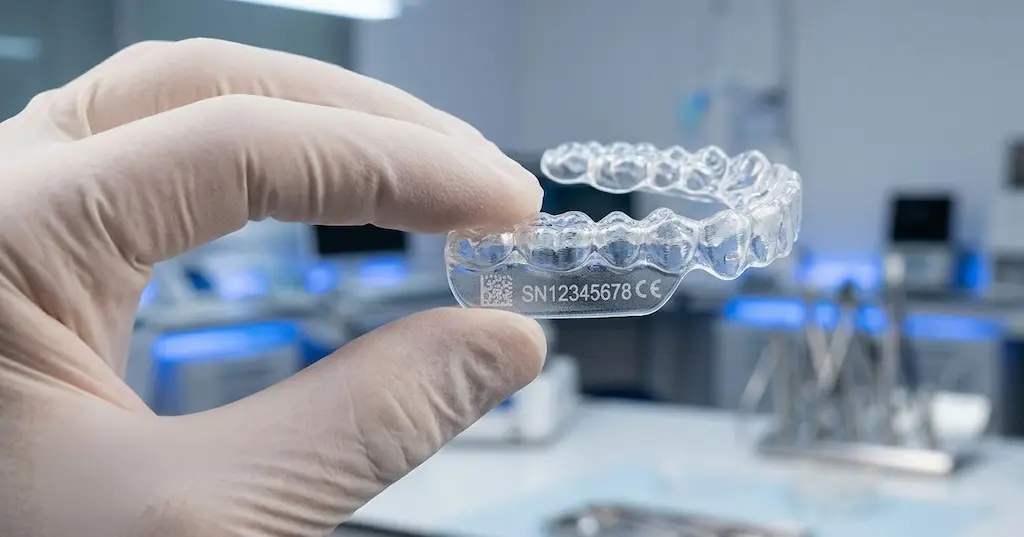

Why UV lasers are ideal for clear aligners

The choice of UV laser-typically at 355 nm wavelength-for marking transparent aligners is not arbitrary: it derives from a combination of optical, photochemical, and thermal properties that no other laser source offers comparably on this specific substrate.

The first reason is photon selective absorption. Transparent thermoplastic polymers absorb UV radiation much more efficiently than near-infrared (1064 nm of Nd:YAG or fiber lasers) or green (532 nm). This higher absorbance allows sufficient energy to be deposited to trigger photodegradation of the polymer chains in a surface layer only a few micrometers deep, without the residual radiation propagating through the thickness of the material causing internal structural damage.

The second reason is the very small heat input. The dominant mechanism in the UV laser is photochemical, not photothermal: high-energy photons directly break chemical bonds (cold ablation) instead of converting to heat. The practical result is that the thermally altered zone (HAZ) remains less than 5 μm, eliminating the formation of micro-fractures, local deformations, or extensive color changes that would compromise both the orthoptic function of the aligner and its aesthetic acceptability by the patient.

The third factor is the size of the focused spot. UV 355 nm systems operate with spots between 20 and 50 μm in diameter, which results in sufficient marking resolution for Data Matrix codes of 2×2 mm size with 100 μm cells, which can be read by standard industrial scanners with more than 99.5 percent reliability. This resolution is unattainable by fiber laser systems operating at 1064 nm, whose typical minimum spot is around 25-30 μm but with thermal effects incompatible with thin polymers.

Engineering challenges: between transparency, geometry and thermal fragility

Anyone who has attempted to adapt a standard laser marking system to the production of aligners has encountered a number of critical issues that emerge not from the technical specifications of the laser, but from the interaction between beam and material under real production conditions.

The risk of micro-fractures and the process window

PETG and TPU used in the production of aligners have a glass transition temperature (Tg) between 65 and 85°C. Even limited heat input can generate localized temperature gradients sufficient to trigger micro-stress in the polymeric lattice. In applications where the part is then thermoformed or subjected to sterilization cycles, these micro-fractures propagate and can compromise the mechanical integrity of the aligner. The acceptable process window is therefore narrow: peak fluence typically between 0.5 and 2 J/cm², repetition frequency of 20 to 80 kHz, and scanning speed between 500 and 2000 mm/s depending on material thickness.

Maintaining transparency and secondary marks

A frequent mistake in setup is the tendency to set parameters too aggressively to achieve visible contrast. On transparent materials, UV laser marking produces contrast through a localized change in refractive index and surface micro-opacification, not through carbonization as on dark polymers. If fluence exceeds the critical threshold, so-called secondary marks are formed: halos of diffuse opacity around the marked area that alter the overall transparency of the device, reducing aesthetic acceptability and potentially generating nonconformity in quality control.

The complexity of fixing on three-dimensional geometries

An aligner is not planar: it is a three-dimensional structure with surfaces of variable curvature, non-uniform thicknesses (0.4-1.5 mm depending on the stage of treatment) and geometries dependent on the anatomy of the individual patient. The depth of field of a focused UV system is typically ±0.2 mm: outside this range, the spot size increases and the energy density falls below the marking threshold. The design of positioning templates therefore becomes as critical as the selection of laser parameters, requiring custom fixtures or autofocus systems with feedback on the signal.

The implementation process: from qualification to production

Bringing UV marking of aligners into production is not a plug-and-play activity. It requires a structured process that goes through at least six distinct steps, each with precise documented deliverables for MDR/FDA compliance purposes.

Automation and inline integration: from closed cell to one-piece flow

The real challenge for large aligner manufacturers-which handle volumes in the hundreds of thousands of units per month-is not marking the individual aligner, but integrating the process into a high-cadence production line with consistent quality and zero rework.

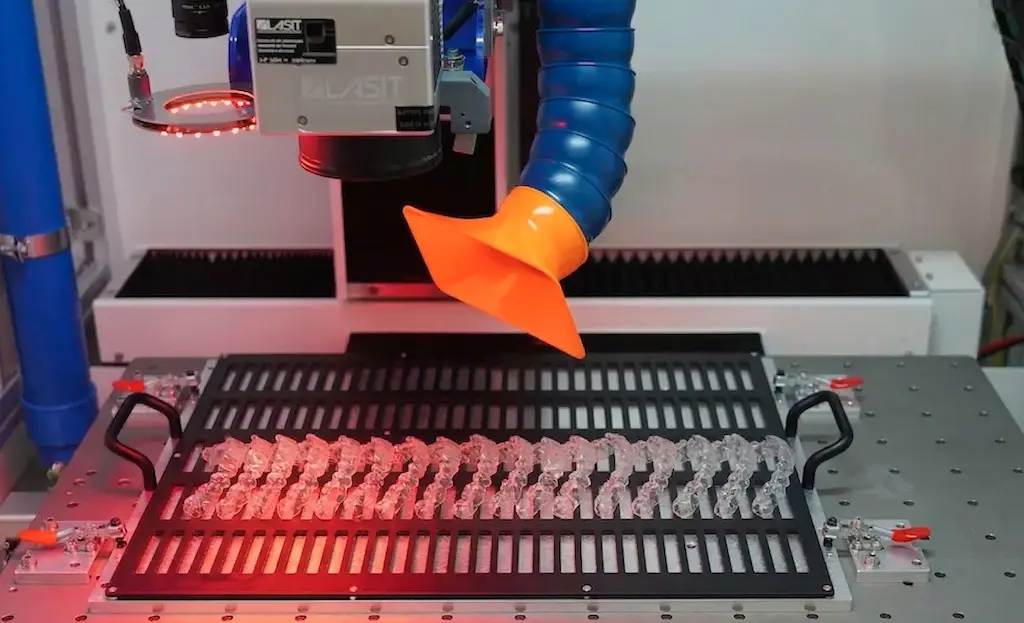

Closed island marking cells

The most common configuration for medium to high production is the closed-island laser cell: a compact system with galvanometer scanner, integrated UV source, fume extraction system, and automatic or semi-automatic aligner fixing unit. The operator inserts a tray of ordered aligners (typically 8-24 pieces per tray), the cell recognizes the layout via a 2D vision system, marks each aligner in the designated position, and releases the tray. Typical throughput is 600-1,200 aligners/hour with a nonconformance rate of less than 0.1 percent on optimized systems.

One-piece flow integration in thermoforming line

For more advanced installations, UV marking is integrated directly into the thermoforming line: the aligner is marked immediately after trimming, still constrained to the positioning stand, before packaging. This approach eliminates a dedicated handling station, reduces WIP (Work in Process) and ensures that each aligner is traceable from the moment of production completion. The main challenge is to synchronize the marking cycle time (< 2 s) with the cadence of the thermoforming machine, which can vary between 8 and 30 s per part depending on the model.

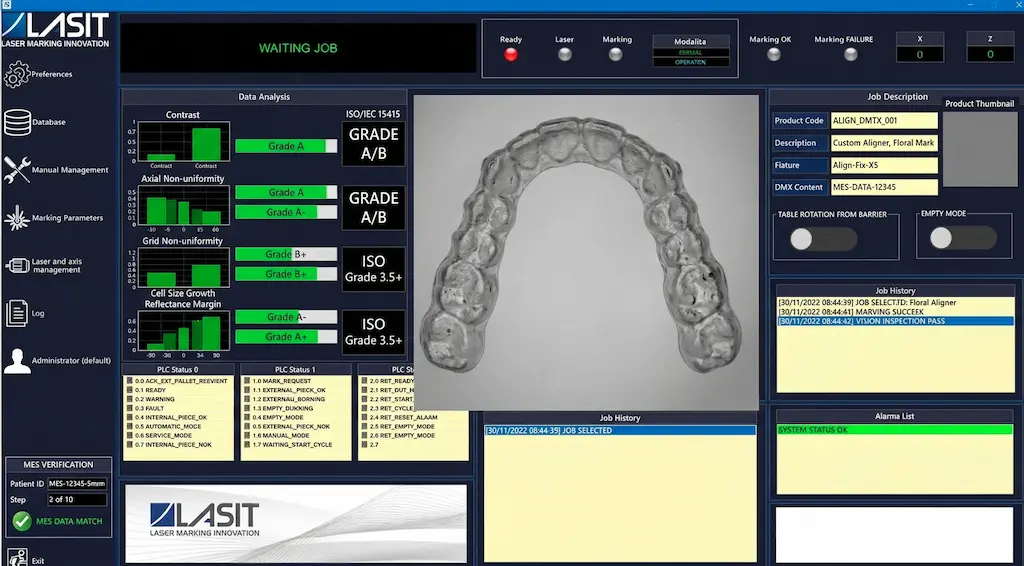

Quality control with vision and OCR

No industrial marking system on medical devices is complete without an integrated automatic verification loop. For aligners, the de facto standard involves an industrial camera positioned downstream of the laser scanner that: (1) reads the marked Data Matrix code and verifies its correspondence with the expected data; (2) measures the quality of the code according to ISO/IEC 15415 (contrast, cell size, geometric deformation); (3) detects the presence of any secondary marks or transparency alterations outside the marking area. In case of an anomaly, the part is diverted to a reject line and the event data is recorded in the ESM with timestamp and defect image-essential documentation for the validation dossier and for the response in case of post-market complaint.

LASIT has developed integrated solutions in this context that combine third-generation UV sources with sub-millimeter resolution vision systems, enabling manufacturers such as industrial dental laboratories and aligner OEMs to achieve OEEs in excess of 95 percent on the marking station, with batch changeover times of less than 10 minutes thanks to automatic laser recipe changeover and optical tray recognition.

Conclusions: UV marking as an enabler of compliance and competitiveness

UV laser marking of transparent aligners sits at the intersection of stringent regulatory requirements, specific material challenges and rapidly growing production demands. Choosing the right technology – 355 nm wavelength, low HAZ photochemical process, integrated verification system – is not a matter of technological preference, but a functional requirement for anyone intending to operate in compliance with MDR, FDA 21 CFR Part 820 and ISO 13485.

The path from first material test to validated production requires application expertise, not just hardware: knowledge of laser-polymer interaction mechanisms, ability to design a repeatable process, experience integrating with clinical data management systems. Those who approach this path with a vendor with an application laboratory, documented testing capabilities, and support for the validation phase significantly shorten time-to-market and reduce the risk of noncompliance.

The post UV Laser Marking of Transparent Dental Aligners: from Traceability to Industrial Production appeared first on LASIT - Laser marking.

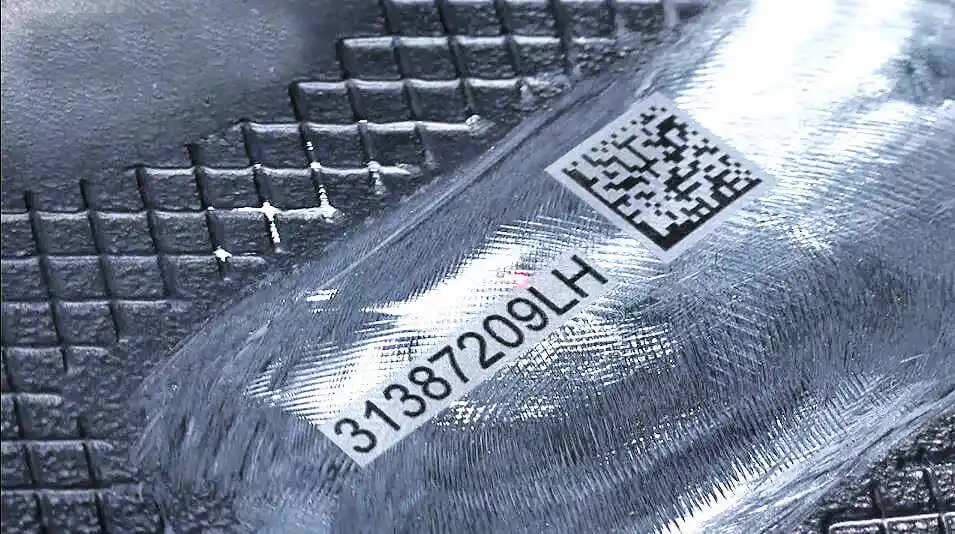

Traditional solutions-sandblasting, chemical degreasing, mechanical primers-involve consumable costs, additional cycle times, waste management, and variability that cannot always be controlled between shifts. Laser cleaning and laser texturing represent an alternative and complementary approach that acts directly on the physics and chemistry of the surface, without contact, without consumables, and with parametric reproducibility that chemical processes are unlikely to achieve. This article explores how these two processes work, in what configurations they are used in automotive lines, and what results can reasonably be expected on sheet metal, battery trays, and structural components.

How laser acts on the surface: physics of cleaning and texturing

Laser cleaning exploits selective ablation: the laser beam is calibrated to a fluence sufficient to vaporize or detach surface contaminants-oxides, oils, greases, printing residues, passivating layers-without affecting the underlying metal substrate. Selectivity is based on the ablation threshold differential between materials: aluminum oxide (Al₂O₃) and organic films have significantly lower ablation thresholds than bulk aluminum or steel, allowing them to be removed with parameters that leave the metal intact.

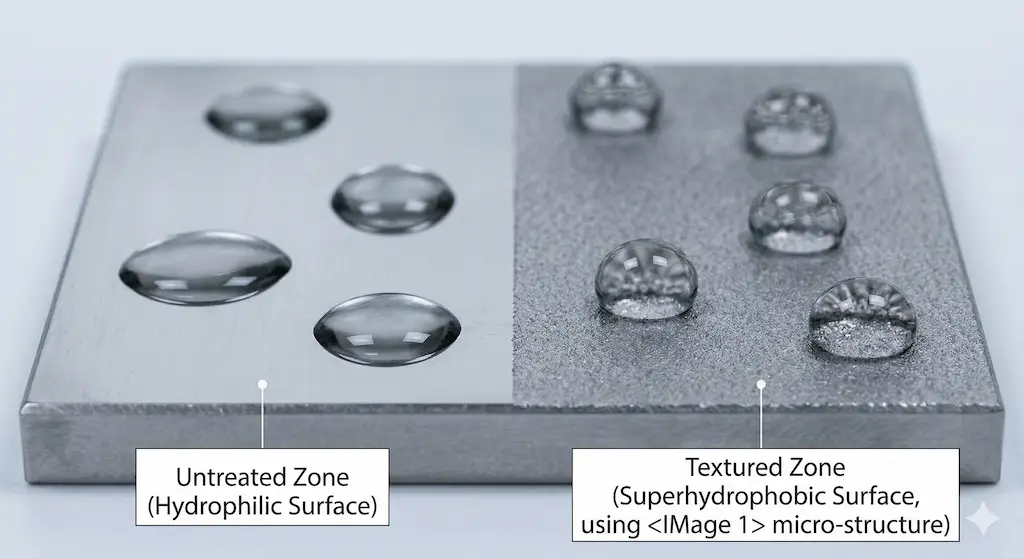

Laser texturing, on the other hand, operates at higher fluences or with scanning patterns programmed to create a controlled surface microstructure: cavities, peaks, channels, or periodic geometries that increase the actual surface area and modulate wettability. The achievable roughness typically varies between Ra 1-15 µm depending on the pattern and power applied, with control over the periodicity of the structure down to a few microns. This type of morphology is crucial for the mechanical anchorage of structural adhesives and the cohesion of the welded joint.

The most commonly used lasers for these applications are pulsed fiber systems (1064 nm) with pulse durations in the ns-ps range. Nanosecond lasers offer the best balance between process speed and system cost; picosecond lasers are preferred when a thermally limited effect is required-that is, when the HAZ (Heat Affected Zone) needs to be less than 1-2 µm, such as on thin materials or geometries with tight dimensional tolerances.

Operating parameters and process configurations

Parameter definition is at the heart of laser process design. There is no universal recipe: operating windows depend on the combination of material, contaminant type, required line speed and target surface quality. As a guide, the most common configurations in automotive pretreatment are in the following ranges:

On the integration setup, it is relevant to distinguish two main architectures. The first is the fixed galvo head configuration with a working field typically 200×200 mm up to 500×500 mm: suitable for components entering the station on shuttle or nest-typically brackets, brackets, inserts. The second is the moving head configuration on a linear axis or robot: necessary when the surfaces to be processed exceed the galvo field or when the geometry is three-dimensional, as in battery tray modules with multiple cell extruded profile.

In-line applications: sheet metal, battery tray and structural components

Laser and resistance welding sheets

In joints of high-strength steel sheets (AHSS, UHSS) intended for hybrid laser welding or resistance spot welding, the presence of coating (zinc, aluminum-silicon for 22MnB5 blanks) can compromise bead quality if not handled properly. Laser cleaning allows the coating to be selectively removed at the splice zone-a strip typically 8-20 mm wide-leaving the rest of the component intact. This operation, performed inline before the soldering station, eliminates coating evaporation porosity formation and reduces metal projections, allowing higher soldering speeds without penalizing the mechanical seal of the joint.

Battery tray and aluminum structures for BEV

Battery trays for electric vehicles combine laser welding and structural bonding on the same component. The extruded aluminum frame (6xxx series) requires the removal of natural oxide-typically Al₂O₃ with thickness varying between 4-30 nm depending on material age and storage conditions-before welding operations. The oxide reduces electrical conductivity in laser conduction welding and increases porosity; its laser removal leads to a measurable reduction in joint porosity, with values dropping below 2% by volume versus 5-10% typical on untreated surfaces.

On the same structures, surfaces intended for bonding with two-component epoxy adhesives (e.g., for cell module attachment) benefit from laser texturing: the microstructure created increases the effective bonding area and-with oriented patterns-can modulate the direction of maximum joint strength. Lap shear tests on 6061 aluminum show increases in release strength of up to 40-60% compared to surfaces polished with P800 sandpaper, with further improvement in resistance to thermal cycling between -40 °C and +85 °C typical of tensile environments.

Brackets and die-cast components

Aluminum die-cast components (ADC12, EN AB-46100) often have silicone wax-based mold release films: contaminants that are particularly critical because they are invisible to visual inspection and highly effective in inhibiting adhesion. Laser cleaning with 200-300 W fiber lasers at scan speeds of 3,000-5,000 mm/s removes these residues by reducing the angle of contact with water from typical values of 60-75° to less than 10°-a direct indicator of high wettability and compatibility with subsequent adhesive or coating processes.

Common challenges and operational best practices

The first mistake encountered in process qualification steps is over-ablation: too high fluences remove not only the contaminant but also the substrate, creating unintentional roughness or-in the case of thin sheets-thermal distortion. The solution is to work with low energy, high frequency pulses (high repetition rate, low peak power), verifying removal with contact angle measurements or XPS rather than visual inspection alone.

A second critical aspect is the management of ablation fumes: material removed from the surface is vaporized or particulated in the process area. Without a properly sized and positioned extraction system, particles fall back onto the newly treated surface, recontaminating it. The reference standard for capture systems in work environments with high-power lasers is EN ISO 11553; in automotive production with lasers over 500 W, it is standard practice to adopt HEPA class H13 or higher filtration systems.

Finally, the time window between cleaning and the next process should be monitored: on aluminum, the native oxide layer regenerates-although more slowly than the original oxide-within a few hours in a humidity-controlled environment. For critical applications, transfer to the soldering or bonding station should occur within 60-120 minutes of laser treatment, with housing in an inert atmosphere in the most sensitive cases.

Comparison with alternative pretreatment technologies

Blasting (shot blasting, grit blasting) has historically been the benchmark for weld preparation on large components. It offers high treatment rates but introduces abrasive residue that must be removed, is not selective in terms of area treated, and is not applicable on complex geometries or thin-walled materials. Chemical pickling (phosphoric acid, alkaline solution) provides uniformity on irregular surfaces but generates effluent to be handled by dedicated equipment, involves process times that are not compatible with inline production rates (typically 5-15 minutes per bath cycle), and introduces variables related to bath concentration and temperature.

The laser is positioned as a complementary technology-not necessarily a substitute in all contexts-with specific advantages in area selectivity (treats exactly where it is needed), parametric reproducibility (same parameters = same surface, verifiable with digital traceability), absence of consumables, and direct in-line integration without wash stations. The main limitation remains the cost per unit area on very large components: for areas larger than 0.5-1 m² to be treated in full, the combination with batch chemical pretreatment is often still the economically preferable choice.

Production line integration: considerations for deployment

Integrating laser cleaning/texturing into an existing automotive line requires an analysis of the available cycle time: laser process speed is a function of power and area to be treated. With 300 W systems at scan speed of 5,000 mm/s and overlap of 50 percent, treating a 200×300 mm area takes approximately 8-15 seconds, compatible with typical automotive production rates of 30-60 seconds per station.

In our experience with BEV and powertrain customers, the most effective integrations adopt dedicated robotic cells with dual shuttles, which allow loading/unloading of one component while the laser works on the next, neutralizing the processing time for effective rate purposes. LASIT systems for cleaning applications are designed with OPC-UA interfaces and standardized digital I/O for process control from line PLCs, with parametric logs for IATF 16949-compliant traceability.

For applications where texturing is used as adhesive joint qualification, surface acceptance criteria should be defined at the design stage: target roughness (Ra, Rz), contact angle, possible XPS verification for energy surface. These parameters become control points in the PPAP surveillance plan and allow closing the loop between laser parameters and quality of the final joint, in view of Industry 4.0.

Final Considerations

Laser cleaning and laser texturing are not universal solutions, but in the automotive field they represent technically sound answers to specific needs: selective removal of oxides and contaminants before welding, controlled and reproducible surface preparation for structural bonding, inline treatment without consumables on complex geometries. The most significant results are achieved where reproducibility matters as much as speed-typically on battery trays, structural brackets, and plates for critical strength joints-and where process traceability is a system requirement, not an optional extra. The choice between cleaning, texturing or the combination of the two depends on the analysis of the failure mode to be prevented: if chemical contamination is the risk, cleaning is sufficient; if a structural increase in mechanical adhesion is required, texturing is the correct lever. In either case, parameter definition requires a structured qualification process that starts with substrate analysis and ends with end-joint verification-not the other way around.

The post Laser Cleaning and Texturing for Welding and Adhesive Preparation in Automotive appeared first on LASIT - Laser marking.

The problem is not just operational. Regulations such as UL 2580 for batteries from electric vehicles, UNECE Regulation R100 for the safety of storage systems, and increasing pressures for compliance with the EU’s battery passport supply chain impose fine-grained traceability starting with the elemental component. Against this backdrop, permanent laser marking has emerged as the technology standard of choice-not as a matter of trend, but for very specific physical, economic, and regulatory reasons.

Why traceability of EV components is a non-negotiable requirement

A modern electric vehicle contains between 2,000 and 8,000 electrochemical cells, depending on the chemistry and format adopted (NMC, LFP, NCA; cylindrical, prismatic, pouch). Each cell is a safety-critical component: an untraceable manufacturing defect can result in uncontrolled thermal events during operation or charging. Capillary traceability makes it possible to circumscribe defective batches, perform surgical recall campaigns, and provide regulatory authorities with the required documentation in the event of an accident.

At the regulatory level, Battery Regulation (EU) 2023/1542 requires that by 2027 every EV battery with a capacity greater than 2 kWh have a digital passport with information traceable down to the module level, and tending to the individual cell. In parallel, OEMs operating under IATF 16949 quality systems must demonstrate full traceability of safety-critical components-a category that includes cells, busbars and stators without exception. The absence of legible marking at the field stage amounts to a break in the traceability chain, with direct consequences for the manufacturer’s legal liability.

The limitations of traditional marking technologies in EV production.

Before laser marking became accessible on an industrial scale, EV component manufacturers mainly used three approaches: adhesive labels, pad printing, and, for robust metal components, cold punching. Each of these presents specific critical issues in the environment of a battery assembly plant.

Adhesive labels remain the most popular solution in manual or semi-automatic processes, but their fate in a battery pack is problematic. The thermal cycling of a battery pack in use-with fluctuations between -30 °C and +60 °C within each charge-discharge cycle- rapidly degrades adhesives. This is compounded by exposure to the electrolyte, which in the case of microleaks can impair code readability in a matter of months. In high-volume plants, the pace of label application is often a bottleneck: each operation requires a cycle time of between 2 and 5 seconds per component, incompatible with lines operating at 1,200 or more cells per hour.

Cold-punching, while providing absolute permanence, imposes mechanical deformation on the component that is incompatible with the thin geometries of cylindrical 21700 or 4680 cells (wall thickness 0.2-0.4 mm) and with copper busbar components, which are subject to micro-cracking that alters conductive properties. Finally, pad printing introduces inks that can interfere with downstream chemical processes-particularly laser soldering of terminals and adhesive bonding of cells into the module.

How permanent laser marking on EV battery components works

Laser marking exploits the principle of interaction between focused photon energy and the crystalline lattice of the material. Depending on peak intensity and wavelength, the beam can induce three types of surface modification: ablation (removal of material by evaporation), blackening by oxidation (typical of ferrous metals with fiber lasers), and photochemical staining (characteristic of UV lasers on polymers and anodized aluminum). The choice of mechanism determines the depth of the mark, the optical contrast achievable, and the mechanical impact on the component.

For cylindrical cells made of stainless steel or nickel, 20-50 W fiber lasers with 1064 nm wavelengths typically operate in the blackening regime at scan rates between 800 and 2,000 mm/s, producing 2D DataMatrix with a minimum modulus of 0.3 mm and sufficient contrast for readout at 400 mm distance. On pouch-format cells with laminated aluminum casing, the process window narrows significantly: aluminum has high reflectivity at 1064 nm, making 532 nm (green) or 355 nm (UV) sources preferable, capable of absorbing up to 40 percent more energy on the same substrate and operating with 20-35 μm spots without risk of perforation.

Operating parameters for cells, busbars and stators: typical configurations

The diversity of materials and geometries means that a single laser configuration does not cover the full range of EV components. Proper parameterization is the determining factor between a brand with OCV (Overall Cell Verification) contrast above 90% and a degraded area that causes scrap and rework.

Copper busbars deserve specific note: copper reflects more than 95 percent of the radiation at 1064 nm at room temperature, making it virtually impossible to mark with standard fiber lasers without risk of optical damage to the system. Transitioning to green sources at 532 nm, with copper’s absorbance about 4 times higher, solves this problem but requires dedicated optics and more careful thermal management to avoid micro-cracking on the conductive surface, which is critical for solder joint contact resistance.

Laser cleaning pre-soldering and pre-bonding: operational synergies in module production

An aspect often underestimated in EV process planning concerns the surface preparation that precedes the operations of laser welding of the terminals and structural bonding of the cells into the module. The presence of native oxides on the aluminum, organic films on the copper, or lamination residues on the cell envelope compromises the quality of the solder joint and the adhesion of structural adhesives, resulting in mechanical strength and in-cycle terminca problems.

Laser cleaning-or selective photothermal decontamination-exploits the same physical principles as marking, but with opposite objectives: instead of modifying the surface functionally, it returns it to a controlled state of optimal cleanliness and roughness. With enlarged spot (100-500 μm) and repetition frequency in the range of 20-50 kHz, a pulsed beam at 1064 nm removes oxide layers 0.5-5 μm thick without altering the metallurgy of the substrate. The result is verifiable inline by measurement of contact angle: properly treated surfaces show angles of less than 10° on aluminum (versus 30-60° for untreated material), ensuring adhesion of two-component epoxy adhesives in excess of 18 MPa in tension.

The industrial opportunity is obvious: integrating cleaning, marking, and optical verification operations in a single station-or at consecutive locations on the same line-eliminates intermediate handling, reduces WIP, and allows code to be read right after cleaning, before any post-process contamination compromises readability. In our experience with customers in the battery module industry, this architecture has enabled reductions in total process cycle time of up to 30 percent compared to compartmentalized solutions.

Laser marking versus alternatives: when to choose which technology

Comparisons between laser marking and alternative technologies cannot ignore the specific operating environment. RFID tags offer superior information content and do not require line-of-sight to read, but the cost per unit (€0.05-0.50 per tag in scaled volumes) over productions of hundreds of millions of cells represents a unit cost burden that no OEM EV can ignore. In addition, RFID tags in the vicinity of significant metal masses-exactly the condition of a battery pack-undergo antenna detuning resulting in reduced read reliability.

Industrial inkjet (CIJ or DOD) is competitive in terms of initial investment, but it introduces inks that must be compatible with all downstream process fluids: electrolytes, cleaning solvents, and adhesive solvents. Chemical compatibility validation is a long and often iterative journey, particularly in a rapidly evolving industry such as battery chemistry. When faced with a change of electrolyte or a new bonding process, inkjet marking requires a new qualification campaign.

Laser marking, by contrast, is inherently chemically inert after the process: it does not introduce foreign material to the surface, is resistant to all solvents and chemicals typical of battery environments, and does not degrade over time at temperature. The cost per brand, once the system is amortized, is measured in fractions of a cent; on volumes of 500,000 cells/year, the differential from adhesive labels pays back the investment over a typical 18-36 month horizon. Systems such as LASIT’s Powermark-designed specifically for electronic and small components with interchangeable UV, green and fiber sources-demonstrate that a single platform can cover the full range of substrates found in a battery assembly plant.

Production line integration: how to deploy laser tracking in an EV plant

The choice of laser system is only the first step. Integration into an EV production line-which can operate at rates exceeding 1,200 units/hour for cells-requires careful design of the station architecture. Beam scanning direction, ablation fume management, vision system for code verification, and interface with the factory MES all determine the quality of the deployment.

On the hardware side, fly-on-the-fly systems (marking on a moving component on a belt) enable the elimination of dedicated idle stations, reducing the footprint and aligning the marking cycle time with the line cadence. With scanning speeds up to 10 m/s and integrated position encoders, it is possible to mark DataMatrix with 32×32 modules on cells moving at 0.5 m/s without loss of quality. For busbars, which require more precise positioning, stations with dedicated handling and verification system with 5 MP camera and coaxial lighting are preferred to ensure Grade A according to AIM DPM on every part.

On the software side, integration with OPC-UA and MQTT protocols enables bidirectional communication with the MES/ERP layer: the marking system receives the data to be encoded (serial numbers, production batch, timestamps, process parameters) and returns the result of the optical verification in real time, feeding the digital twin of the component. This architecture is the operational basis for complying with the traceability requirements of the EU Battery Regulation within the deadlines.

Conclusions

Laser marking is not simply a more modern alternative to traditional solutions: in the production of electric vehicle components it is, increasingly, the only technology that can simultaneously meet the requirements of permanence, chemical inertness, cycle speed and regulatory compliance. In-depth knowledge of the process parameters for each substrate-steel or aluminum cells, copper or aluminum busbars, Fe-Si sheet metal stators-is the differential between a system that produces readable brand and one that generates expensive scrap. Synergistic integration with laser cleaning pre-welding and pre-bonding adds further operational value, consolidating multiple processes into a single station architecture. For those designing today’s battery assembly lines of the next decade, correctly defining the laser traceability strategy is an investment with measurable returns-in quality, compliance, and unit cost.

The post Laser tracking in electric vehicles: technical guide for cells, busbars and stators appeared first on LASIT - Laser marking.

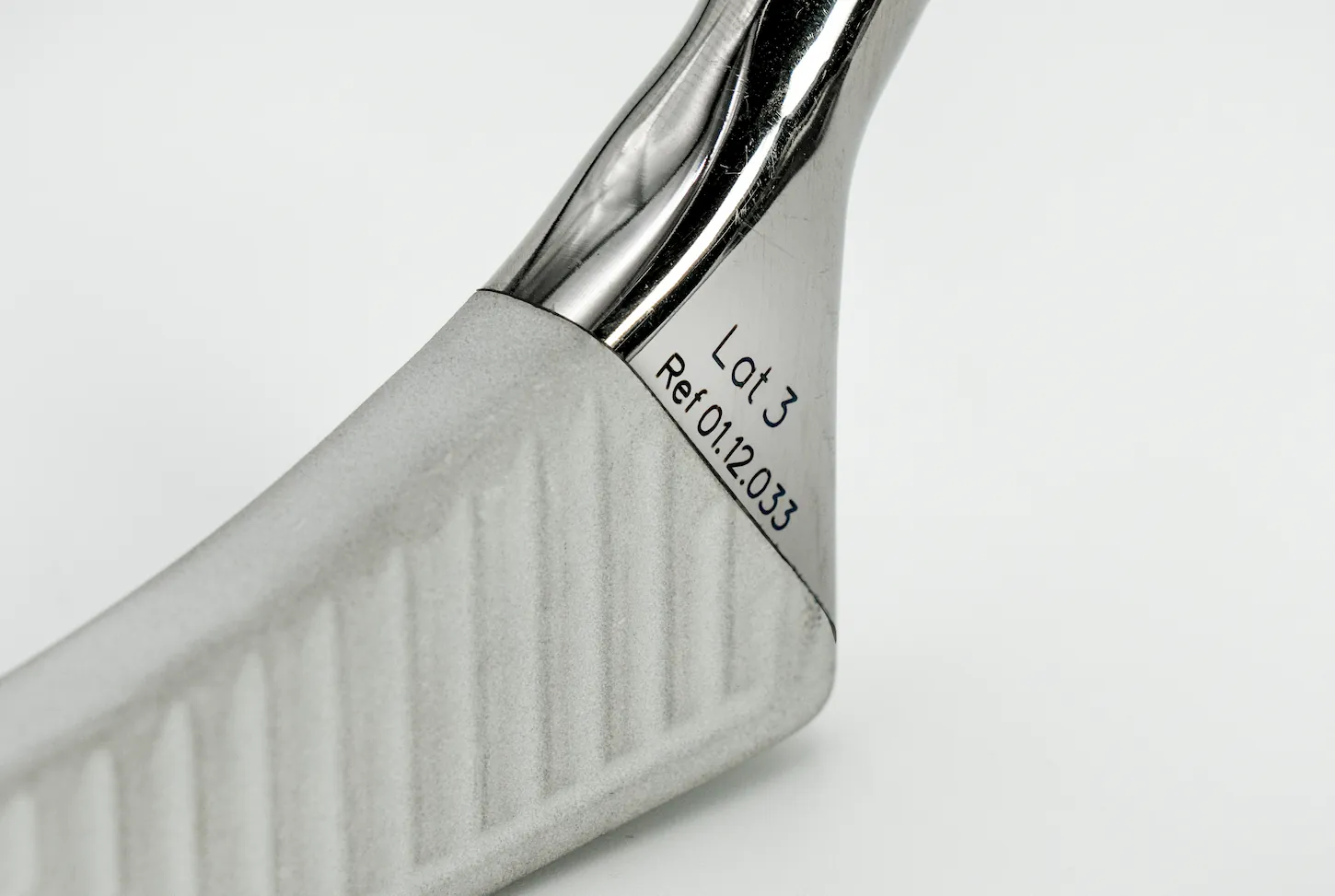

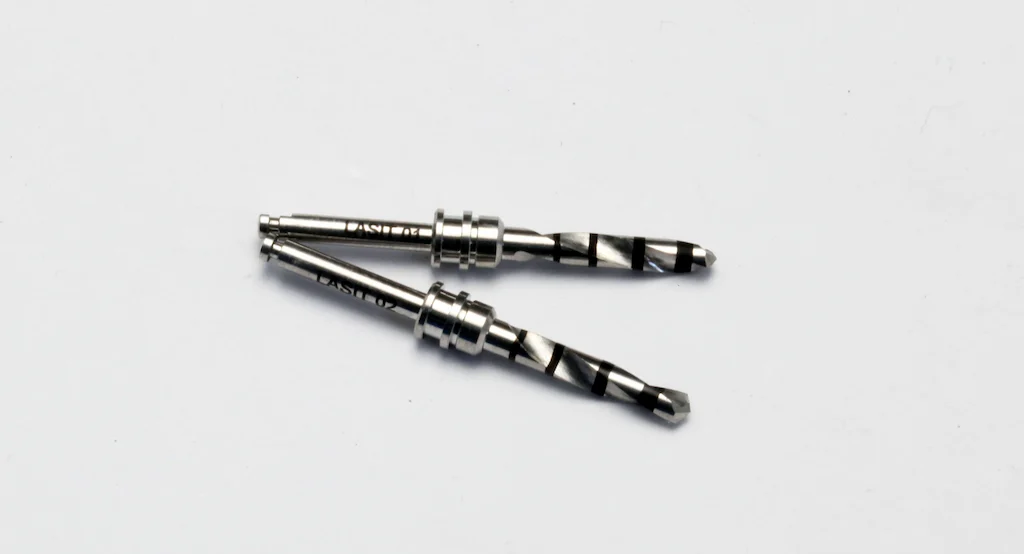

For manufacturers of implants, abutments, implant drills, and rotary instruments, this translates into a precise technical question: how to apply a permanent, machine-readable identifier to millimeter-sized metal surfaces that survives hundreds of autoclave sterilization cycles at 134°C and in no way compromises the biocompatibility of the material? The answer the industry has identified with growing acceptance is laser marking, in fiber, UV or green declination depending on the substrate and level of detail required.

Regulatory requirements, technical constraints, and limitations of traditional solutions

The regulatory framework: UDI, MDR and ISO 13485

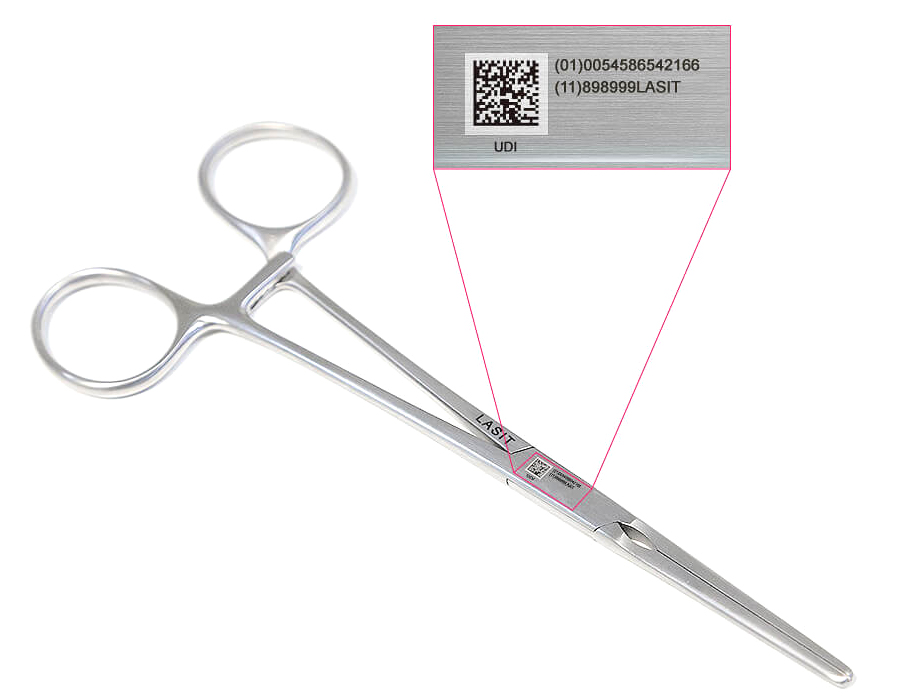

The UDI system has two components: the Device Identifier (UDI-DI), which identifies the model and manufacturer, and the Production Identifier (UDI-PI), which includes lot, serial number and expiration date. Both must be on the label and-for reusable devices such as surgical instruments-directly on the device in Machine Readable Form (MRF). The gold standard for coding is the DataMatrix ECC200, capable of holding more than 2,000 alphanumeric characters in an area that on dental instruments is often reduced to less than 4×4 mm, requiring symbol cells as small as 150-200 µm on a side.

The required quality management system is ISO 13485:2016, which requires complete validation of the marking process according to an IQ/OQ/PQ (Installation Qualification, Operational Qualification, Performance Qualification) approach. Any variation in laser parameters must be justified and documented. The process must be repeatable and reproducible with Cpk ≥ 1.33 on critical features-degree of code readability, surface roughness in the marked area, absence of metallographic alterations.

The limitations of pre-laser technologies

Before laser marking became affordable even for medium and small batches, dental manufacturers had basically two alternatives: mechanical engraving by pantograph or diamond tools, and pad printing with special inks. Both have structural criticalities that become untenable with MDR requirements.

Mechanical etching introduces surface stresses by plastic deformation: on grade 4 or grade 23 titanium (Ti-6Al-4V ELI), this can trigger microcracking near the marking, creating trigger sites for crevice corrosion in the oral environment. The induced roughness (typically Ra > 0.4 µm in the etched area) promotes bacterial colonization, which on peri-crestal implant surfaces is a critical risk factor for peri-implantitis. Pad printing, on the other hand, is not allowed at all for permanent markings on reusable devices: inks do not withstand saturated steam sterilization cycles at 134°C/3 bar, and regulations explicitly prohibit dyes or pigments that are not biocompatible in contact with tissue.

Laser marking for dental medical devices: physical mechanism and key advantages

The laser acts on the metal through a mechanism of photon-crystal lattice interaction that differs markedly from mechanical removal. The beam energy is absorbed by the metal’s conduction electrons and transferred to the lattice in times on the order of picoseconds (for nanosecond pulsed sources) or femtoseconds (for ultrashort sources). The result depends on the fluence applied: below the ablation threshold, the material undergoes an oxidative surface modification-a phenomenon that on titanium produces the characteristic blackening by formation of a TiO₂ layer of controllable thickness between 20 and 200 nm. This oxide is not a contaminant: it is chemically identical to the passive layer that makes titanium biocompatible, but with a thickness optimized for visual absorption that generates the optical contrast necessary for reading the DataMatrix.

Yb:YAG fiber sources (1064 nm) are the predominant choice for stainless steel (AISI 316L, ISO 5832-1) and cobalt-chromium alloys: the good absorbance of these materials in the infrared, combined with peak powers of up to 15 kW in Q-switch mode, allows high marking speeds-8,000-10,000 mm/s with high-inertia galvanometric heads-while keeping the thermal influence zone within 3-5 µm. The 355 nm UV laser (third harmonic Nd:YAG) is preferred for high-purity titanium, PEEK and biocompatible polymers: the shorter wavelength ensures 10-15 µm spots with energy per pulse typically less than 100 µJ, further reducing thermal stress and enabling markings on area < 2×2 mm without geometric distortion. The 532 nm green laser finds application on materials with high infrared reflectivity, such as some highly polished steels intended for aesthetic prosthetic components.

An aspect often overlooked in technical evaluations is the actual depth of substrate alteration. SEM-EDX analyses conducted on titanium grade 23 samples tagged with fiber lasers (parameters: 20 W, 100 kHz, speed 2000 mm/s, 3 passes) show that the zone of metallurgical alteration is confined to within 4-6 µm of the surface, with absence of micro-cracks at 5000× resolution and XRF composition unchanged from the base material. This data is critical for the documentation of the technical dossier required by Annex II of the MDR.

The picosecond source: why it changes the rules for medical devices

Within the category ‘laser marking’ there is a fundamental physical distinction that is often flattened in the commercial literature: the difference between nanosecond (ns ) and picosecond (ps) pulse sources. This is not a quantitative variation of the same phenomenon, but a qualitative change in the mechanism of beam-matter interaction-with direct consequences for the metallurgical quality of the marking, the integrity of biocompatibility, and application possibilities on critical materials and geometries.

A typical ns Q-switch laser delivers pulses of 10 to 200 ns with peak powers on the order of 10 to 15 kW. During that time-long compared to the time constants of thermal phenomena in metal-the energy absorbed by the conduction electrons transfers to the crystal lattice and produces localized melting: the material melts, oxidizes (in the case of titanium producing the contrast-generating TiO₂ layer), then solidifies. The result is technically excellent for the vast majority of applications, but leaves a thermal alteration zone (ZAT) of 3-8 µm and a thin layer of remelted material (recast layer) of 0.5-2 µm at the edges of the marking.

A ps source delivers pulses from 2 to 15 picoseconds-that is, 10-100 times shorter. With the same energy per pulse, peak power reaches up to 500 kW, generating enough photon density to triggerdirect multipotonic ionization of the lattice: atoms are removed from the substrate without passing through the liquid phase. This mechanism, called cold ablation or nonthermal ablation, produces a ZAT of less than a micrometer-at the limit of detectability even with high-resolution SEMs-and the almost complete absence of recast layers. The resulting marking has Ra roughnesses between 0.05 and 0.25 µm in the ablated zone, as opposed to the 0.3-0.8 µm typical of a well-optimized ns process.

Where the picosecond becomes superior: the critical application cases

For most marking applications on grade 4 titanium or AISI 316L steel implants, a well-configured ns system produces ISO 15415 grade A/B compliant results and fully meets MDR requirements. The picosecond becomes the technically superior-and in some cases the only viable-choice in four specific scenarios.

The first is marking on oxide zirconia (Y-TZP), the reference material for monolithic crowns, cover screws in esthetics, and ceramic abutments. With ns sources, thermal energy transferred to zirconia can induce phase transformation from tetragonal to monoclinic-a phenomenon that reduces the fracture toughness of the material by up to 30 percent in the area adjacent to the marking. The ps laser, operating in the cold ablative regime, selectively removes the material without triggering this phase change, fully preserving the mechanical properties of the ceramic. This result can be verified by micro-Raman analysis on the marked area.

The second critical scenario concerns SLA and SLActive (sandblasted large grit acid-etched) implant surfaces, where sub-micrometer nanotopography is the determining factor for osseointegration. A focused ns beam, even at low fluence, can flatten this morphology in the irradiation area by diffuse heat. The picosecond spot size-typically 5-15 µm with M² < 1.3-allows the DataMatrix to be placed in a flat area of the implant neck without interfering with the nanotopography of the coils, as long as the layout is designed with sufficient quiet zone from the surface treatments.

The third case concerns grade 23 titanium devices (Ti-6Al-4V ELI) for cyclic loading applications-such as fixtures for zygomatic implants or superstructure bars-where fatigue strength is a critical safety parameter. The absence of recast layer in the ps process eliminates a major cause of fatigue crack initiation at the marking. Fatigue life analyses on specimens marked with ns and ps processes at the same geometry show fatigue limit increases in the range of 15-25% in favor of the ps process, a finding relevant to the drafting of the MDR Annex II technical dossier.

The fourth emerging scenario is marking on PEEK and high-modulus biocompatible polymers (PAEK, PI): the 355 nm UV ps laser produces extremely clean photochemical-mechanical ablation, without the peripheral carbonization zone that even the UV ns laser can generate on long-chain polymers. The result is sharp contrast, edges defined to 5 µm, and no residues that could be classified as surface contaminants in the sterilization process.

Table 2-Technical comparison ns vs ps for dental medical device applications. ZAT and Ra data are average values on titanium grade 23; vary depending on operating parameters.

The cost gap between ps and ns sources has narrowed significantly over the past five years: 1064 nm ps systems are now available in the €70,000-150,000 range, compared with €35,000-80,000 for an equivalent ns system. Over a 7-year horizon and volumes of 30,000+ devices/year, the difference in cost per tagged part is less than €0.05, amply justified by the advantages in terms of metallurgical quality, expansion of the application portfolio (zirconia, SLA, polymers), and simplification of the validation dossier-where the documented absence of ZAT and recast layer significantly reduces the number of SEM analyses required in the OQ plan.

Technical specifications and system configuration

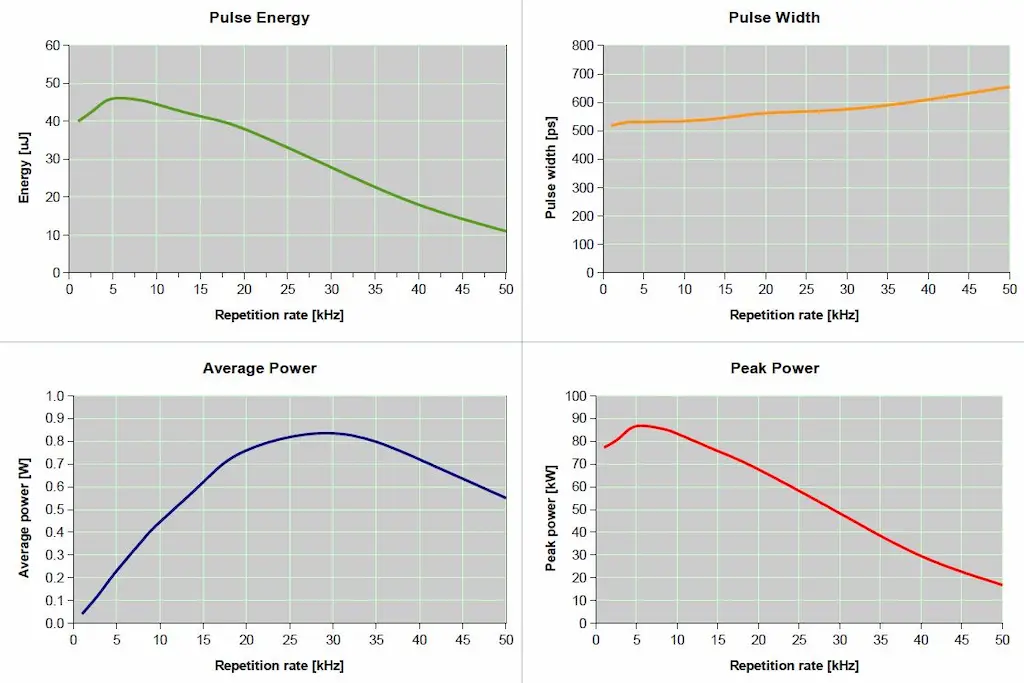

The following table summarizes the key operating parameters of laser configurations typically used in dental medical device manufacturing, based on LASIT’s experience with orthopedic and dental customers.

In terms of hardware, systems intended for medical device manufacturing require specific configurations compared to general industrial applications. The three-axis (3D) galvanometric scanning head allows constant focus on conical or cylindrical surfaces-such as the body of an implant with a helical profile-within ±15 mm vertical travel without mechanical repositioning of the part. For more complex geometries (shank drills, endodontic instruments), the optimal solution involves a rotary axis synchronized electronically with the galvo head, allowing continuous cylindrical development marking with 0.1° angular resolution. The control software must handle automatic serialization with IP augmentation, bidirectional communication with the company’s MES via OPC-UA or API REST, and automatic generation of the marking record in EUDAMED-compliant format.

Technical comparison: laser vs mechanical engraving vs pad printing

The choice of marking technology for medical devices is not solely an economic decision: it has direct implications for regulatory compliance, product durability and clinical safety. The following table systematizes the most relevant comparison criteria for technical and regulatory decision makers.

The total cost of ownership item deserves a closer look. A fiber laser system for medical applications has an indicative initial investment of €35,000-80,000 depending on the configuration, but an extremely low operating cost: the Yb doped fiber source has an MTBF of more than 100,000 hours, requires no process gas, and has no consumables in the strict sense of the term. On a volume of 50,000 installations/year, the marking cost is in the range of €0.03-0.08/piece, including depreciation, energy and scheduled maintenance. Mechanical solutions have seemingly lower costs per part, but they require periodic tool renewal, fixture recalibration, and do not guarantee process traceability-an element that becomes a critical nonconformity in ISO 13485 audits.

Technical challenges: biocompatibility, micro-cracks, and readability on complex surfaces

Titanium: a material that rewards precision

Medical-grade titanium (ASTM F67 for commercially pure Grade 4, ASTM F136 for Ti-6Al-4V ELI alloy) is an extraordinarily surface-reactive material. Its biocompatibility is critically dependent on the integrity of the passive oxide layer: any process that alters the surface composition, introduces metal contaminants, or creates geometric discontinuities can reduce osseointegration and increase the risk of corrosion in a biological environment.

The most critical laser parameter for preserving biocompatibility is not average power, but fluence per pulse (J/cm²). With Q-switch fiber lasers operating at 1064 nm, the safe operating window for titanium grade 4 is typically between 0.5 and 3.5 J/cm² per pulse, with repetition frequencies of 50-200 kHz and scanning speeds of 500-3000 mm/s. Below 0.5 J/cm² the marking is insufficiently contrasted (ISO 15415 grade < C); above 4 J/cm² there is a risk of material removal with borer formation and spindle projections. With ps sources, the thresholds change profoundly: the operating window widens, as the cold ablative mechanism is inherently less sensitive to fluence fluctuations in the 0.3-5 J/cm² range, and most importantly, borer and recast layer formation is absent by physical definition-not by parametric optimization, but by the very nature of the interaction.

Surgical steels and CoCr alloys: the issue of chromium

For AISI 316L steels and cobalt-chromium alloys used for burs and surgical instruments, the primary challenge is not micro-cracking but surface chromium diffusion induced by poorly controlled thermal cycling. Excessive energy per pulse-above the ablation threshold-can cause preferential evaporation of chromium, depleting the surface CrO₃ layer that provides corrosion resistance and increasing the potential for release of metal ions into the biological environment. This phenomenon is detectable by X-ray Photoelectron Spectroscopy (XPS) analysis and must be part of the process validation plan for reusable instruments classified as Class IIa or IIb according to MDR.

PEEK and polymers: where the UV laser makes a difference

PEEK (polyetheretherketone) is the emerging material for dentures, temporary abutments and surgical guides. Its marking with IR fiber lasers is problematic: absorption at 1064 nm is low and requires high fluences that carbonize the polymer, generating blackened areas with low adhesion and potential particulate release. The UV laser at 355 nm, with its predominantly photochemical-ablative interaction (breaking molecular bonds rather than thermal fusion), produces clean, defined markings with sharp edges and no thermal halo-verifiable by optical microscopy at 200× without the need for SEM.

Conclusions: laser marking as quality infrastructure, not cost

Permanent laser marking for dental medical devices has gone through a decade-long transition from a specialized technology to a system requirement. The MDR/UDI requirement has accelerated this convergence, but the underlying technical reason is deeper: no alternative technology simultaneously guarantees permanence, biocompatibility, geometric accuracy, and process traceability at the level required by modern clinical practice.

Within the laser family, the most relevant distinction for the coming years is between nanosecond and picosecond sources. The former remain the correct and mature choice for the vast majority of applications on titanium and surgical steels in high volumes, with excellent TCO and established validation processes. Ps sources become the technically superior-and in some cases mandatory-choice on zirconia, SLA/SLActive surfaces, highly critical cyclically loaded alloys, and high modulus polymers: four categories that cover an increasing share of the production portfolio of high-end dental manufacturers.

There are six key points for informed technical evaluation. The choice of wavelength (1064, 532, 355 nm) and time regime (ns vs ps) is not interchangeable: it depends on material, geometry and dimensional requirements of the code. IQ/OQ/PQ validation should be planned at the time of purchase, not a posteriori. Fluence per pulse is the primary control parameter of biocompatibility, and ps widens the safe operating window. Integration with MES via OPC-UA or REST API is a necessary condition for EUDAMED traceability. The TCO of ps is justifiable as low as 30,000 parts/year if the portfolio includes zirconia or treated surfaces. Finally, LASIT supports dental medical device manufacturers in the entire implementation journey-from optimal source selection to ISO 13485 validation, from MES integration to operator training. Contact our applications team for a test session on your specific material and geometry.

The post Traceability without compromise: the challenge of marking in dentistry appeared first on LASIT - Laser marking.

This article is aimed at process managers and welding engineers working with carbon steel, stainless steel, and aluminum alloys in serial production settings. The goal is to provide a precise technical overview of how pre-weld Laser cleaning differs from traditional methods, what parameters govern the process, and how cleaning quality translates into measurable metallurgical results.

Contaminated Surface, Compromised Joint: Mechanisms of Degradation

When the laser beam hits a contaminated surface, the first consequence is a localized and uncontrolled change in absorbance. An oil or grease film, even a thin one, changes the surface emissivity and can induce explosive vaporization in the molten bath. Trapped vapor during solidification generates porosity, one of the most critical defects because it is difficult to detect by visual inspection and strongly penalizes the fatigue strength of the joint.

Oxides, particularly aluminum oxides (Al₂O₃, with a melting point at about 2050°C versus 660°C for base aluminum), create refractory layers that prevent complete fusion between the joint edges. The typical result is a lack of lateral fusion, that is, a partial discontinuity in the bead that drastically reduces the effective load-bearing section without being visible from the outside. Paint residues or e-coat, on the other hand, contribute volatile hydrocarbons that produce gaseous inclusions and, in the presence of chlorine or other halogens, can trigger accelerated intergranular corrosion.

From the standpoint of process repeatability, contamination is primarily a problem of variability: the same laser program produces different joints on identical parts just because the oil film has uneven thickness from part to part, or because surface rust is unevenly distributed. In serial production, this variability translates directly into scrap and rework costs that are difficult to predict.

Main Contaminants and Their Effect on the Welding Pool

An operational classification of contaminants helps to define the most appropriate cleaning protocol. Each category interacts with the welding process through distinct physicochemical mechanisms.

Oils and greases from machining are the absolute most frequent contaminants on milled, turned, or molded components. Composed mainly of long-chain hydrocarbons, they decompose in the molten bath releasing CO and CO₂ that, trapped during rapid solidification, generate porosity distributed throughout the bead volume. Their presence also reduces surface wettability, destabilizing the shape of the bead itself.

Oxides and hydroxides form spontaneously on steel for even short residence times (thin rust on carbon steel stratifies in hours in humid environments) and extremely stably on aluminum. Iron oxides, while having lower melting points than alumina, introduce compositional inhomogeneities into the bath and can act as thermal stress crack cores.

Paints, e-coats and organic coatings are increasingly found on automotive components that are welded after anticorrosive treatment. Thermal decomposition of these layers produces high-pressure gases in the bath, resulting in spattering, coarse porosity and, in the worst cases, projections that damage optics and fixtures. In addition, many epoxy-based primers contain zinc pigments that, sublimating at about 907°C, generate toxic vapors and introduce metal inclusions into the joint.

Moisture and salts are particularly critical for stainless steel and aluminum alloys in environments with significant temperature ranges. The presence of residual chloride ions from cooling operations accelerates post-weld intergranular corrosion, especially in thermally altered zones (HAZs).

Traditional Methods vs. Laser Cleaning: A Technical Comparison

Conventional surface preparation methods-solvent washing, alkaline degreasing, mechanical brushing, sandblasting-have been the norm in industry for decades, and each has structural limitations when applied in an automated manufacturing context.

Cleaning with organic solvents (acetone, IPA, MEK) is effective on oils and greases but leaves residues if the solvent does not evaporate completely, and does not attack established oxides. It is a manual process by definition, difficult to standardize and subject to increasingly restrictive regulations on the use of VOCs. Alkaline degreasing in the bath solves the grease problem more systematically, but requires a rinse-and-dry cycle that adds cycle time and introduces the risk of residual moisture contamination.

Mechanical brushing with abrasive tools or steel brushes is commonly used on aluminum and steel to remove oxides, but it contaminates the surface with metal fragments from the tool itself-especially problematic on stainless, where deposited iron particles can become corrosion nuclei. Blasting is effective on large surfaces but introduces compressive stresses that are difficult to control, is incompatible with complex geometries, and requires a dedicated chamber with a suction system.

Laser cleaning overcomes these limitations for three basic reasons. First, the process is selective by ablation threshold: the beam fluence is calibrated so that it removes the contaminant (which has a lower ablation threshold than the base material) without affecting the metal substrate. Second, it is inherently automatable: the beam can be guided by galvanometer scanners or robots to treat exactly the areas that will be soudated, in sequence with the welding cycle itself, eliminating the need to transfer the part to a separate station. Third, it requires no consumables: no solvents, no sand, no tools to replace, significantly reducing recurring operating costs and environmental impact.

Key Parameters of Laser Cleaning Pre-Soldering

The design of the laser cleaning process requires the same care applied to the welding itself. Four parameters govern the outcome of the treatment: average power, scan speed, overlap between passes, and focus distance.

The average power (typically expressed in watts) determines the energy fluence per unit area. For oil and grease removal on carbon steel, values in the 50-150 W range are often sufficient with pulsed fiber sources; for compact oxides on aluminum or thick organic coatings, 200-400 W may be required. The goal is to exceed the contaminant ablation threshold while remaining below that of the substrate, which for steel is typically 1-2 J/cm² with nanosecond pulses.

Scan speed (m/s) and overlap step (%) together define the energy dose received by the surface. A 30-50% overlap between adjacent passes ensures uniformity of treatment; excessive overlaps can locally heat the substrate beyond critical temperatures for the microstructure, while insufficient overlaps leave untreated smears visible in UV inspection.

Focus directly affects power density. Working in focus condition (minimum spot) maximizes density and speeds up removal of hard contaminants such as oxides. For softer organic contaminants, working slightly off-focus with larger spot allows larger areas to be covered for the same cycle time, reducing thermal stress.

Table 1 – Typical operating configurations for pre-weld laser cleaning (pulsed fiber source, 1064 nm wavelength, 50-200 ns pulses)

In the production line, integration with robots or CNC linear axes allows the cleaning path to be synchronized with the welding trajectory: laser cleaning is performed in preparatory pass on the same bead that will be welded a few seconds later, eliminating the risk of recontamination that exists when cleaning and welding occur at separate stations.

From Clean Quality to Metallurgical Results: Data and Verification

The correlation between surface preparation and joint quality is not theoretical: it is measurable and documentable through standardized testing, and data available in the literature and from our experience with customers in the automotive and structural components industries show consistent and reproducible improvements.

On the porosity front, comparative metallographic analyses of cross sections of beads obtained with and without Laser cleaning show reductions in porous area of 60% to 85% for pre-laser-treated aluminum components compared to manually degreased components. Residual porosity typically falls below 2% of the cross-sectional area, a threshold considered acceptable by EN ISO 13919-2 for class B joints.

Tensile strength and fatigue tests show an even more significant benefit: the variability in tensile strength (normalized standard deviation) is reduced by 40-60% when switching from solvent cleaning to controlled Laser cleaning. This reduction in variability is probably the most important finding for those running IATF 16949-certified processes, where process capability (Cpk) must remain above 1.33 even on joint mechanical properties.

At LASIT, we have integrated pre-weld Laser cleaning cycles into automotive aluminum structural component assembly applications, finding a reduction in process rejects (nonconformance to post-weld ultrasonic inspection) of more than 70% compared to the previous configuration with manual chemical cleaning. A significant side benefit was the reduction in overall cycle time: by eliminating the degreasing station with associated transport and drying, the cycle was shortened by 18-25 seconds per part, with a direct impact on the OEE of the line.

There are established quantitative methods for verifying the quality of cleanliness. The water break test (ASTM F22) evaluates surface wettability after treatment: a surface free of organic contaminants has contact angle less than 10°. Measuring the contact angle with an optical protractor is the most accurate method for process qualification during setup. For oxides, UV fluorescence or X-ray Photoelectron Spectroscopy (XPS) analysis on qualification samples provide surface compositional data that complete the characterization.

Implementation in Production: Practical Considerations

The decision to integrate Laser cleaning into an existing or new welding line is first and foremost an engineering decision regarding layout, safety, and process synchronization.

From a fume management point of view, Laser cleaning generates a plume containing fine particulate matter and volatile organic compounds that must be extracted effectively. A localized extraction system with HEPA and activated charcoal filtration is essential: not only to protect operators and laser optics, but also to comply with the emission limits of Directive 2004/37/EC on carcinogens in the workplace when treating surfaces with e-coat residues or isocyanate-based primers.

In terms of integration with line controls, modern laser systems expose digital interfaces (EtherCAT, Profinet, OPC-UA) that allow process parameters and cleaning cycle completion status to be recorded for each part. This tracking is particularly relevant in contexts where process documentation is a regulatory requirement, such as in supplies to automotive OEMs that require IATF 16949 compliance with full traceability of the production process.

The ROI of investment in Laser cleaning is built on three items: elimination of chemical cleaning consumables, reduction of welding waste, and reduction of cycle time. In applications with volumes greater than 50,000 parts/year on aluminum or specialty steel components, the payback is typically in the 12-24 month range, with a low risk profile because the process benefit is verifiable and measurable as early as the pilot phase.

Final Considerations

Surface cleaning before laser welding is not an auxiliary operation: it is an integral part of the process, and its quality directly determines the metallurgical quality of the joint. Laser cleaning offers a distinct technical advantage over traditional methods-selectivity by ablation threshold, no consumables, full automatability, process traceability-that translates into measurable data: less porosity, less mechanical variability, less scrap, shorter cycle.

For those designing a new laser welding system or reevaluating an existing line, the starting point is a rigorous characterization of the contaminants present and the regulatory requirements applicable to the joint. From there, defining the process parameters (power, speed, overlap) for the specific material is a structured engineering activity, not empirical experimentation. With the right configuration, Laser cleaning becomes a quality multiplier for the entire welding process.

The post Laser Cleaning Before Laser Welding: How Surface Preparation Determines Joint Quality appeared first on LASIT - Laser marking.

The enactment of EU MDR 2017/745 and corresponding FDA 21 CFR 830 regulations have made direct marking mandatory for all Class II and III implantable medical devices, including osseointegrated implants, prosthetic abutments, cover screws, and reusable rotary instruments. The problem is technical before it is regulatory: on titanium surfaces 3-5 mm in diameter, curved and intended for repeated sterilization, traditional mechanical etching and pad printing technologies show structural limitations that are difficult to overcome.

Laser marking-fiber or UV depending on the material and application-is now the benchmark solution for this industry.

Regulatory Requirements: what MDR 2017/745 says and what it implies for the manufacturer

Regulation 2017/745 states that implantable medical devices must bear directly on the surface a UDI-DI (Device Identifier) code in DataMatrix format (ISO/IEC 16022), with a minimum module size of 0.25 mm and minimum quality level ANSI/AIM DPM Grade B. For reusable devices, such as stainless steel or carbide rotary instruments, the marking must survive manufacturer-defined sterilization cycles-typically 500+ autoclave cycles at 134 °C according to EN ISO 17665.

This imposes a definite physical constraint: the code cannot be applied with inks or surface coatings, as these degrade both chemically (saturated steam, peracetic acid, UV radiation in advanced disinfection cycles) and mechanically (abrasion, ultrasonic cleaning). The manufacturer is required to validate residual readability according to ISO 15223-1 and document it in the Technical File according to Annex II MDR.

At the level of clinical traceability, the Ministerial Decree Oct. 7, 2021, transposes MDR and requires that the UDI be associated with the patient’s electronic medical record and the national implant registry (BDNPM). This means that an illegible code during a surgical revision or explant is not just a quality issue: it is a systemic noncompliance involving the manufacturer, the healthcare facility, and, in the case of adverse events, the competent authority.

Why Laser Marking Outperforms Mechanical Engraving and Pad Printing

Traditional alternatives to laser marking-electroengraving, micro-percussion, and pad printing-dominated the industry until the early 2000s, but they have physical limitations that cannot be circumvented when working on implantable medical devices.

Mechanical engraving and micropercussion

Vibratory tip or percussion systems create identation by plastic deformation of the material. On Gr4 titanium this generates sub-surface micro-cracks with depths varying between 15 and 80 µm depending on alloy hardness and angle of attack. These discontinuities represent preferential sites of crevice corrosion initiation in the physiological environment and, on rotating instruments, trigger points for mechanical fatigue. Added to this is the practical impossibility of achieving resolutions below the 0.4 mm modulus without risking compromising the geometry of the component.

Pad printing and screen printing

Ink processes – pad printing for three-dimensional surfaces, screen printing for flat surfaces – apply organic layers with typical thicknesses of 5-25 µm. Sterilization resistance is limited: after 50-100 autoclave cycles, the adhesion of UV-curable inks is progressively reduced by differential thermal expansion cycles. For implantable Class III devices, MDR explicitly prohibits the use of non-biocompatible inks as permanent markers, as they can release extractable substances in aqueous environments at physiological pH.

The laser advantage: physical modification of the surface

Laser marking operates through a permanent modification of the surface metallurgical structure without addition of external material. In the controlled oxidation regime (laser anodizing), a pulsed beam at 1064 nm on titanium locally induces a layer of titanium dioxide TiO₂ with controllable thickness between 20 and 200 nm: the interferential effect on light produces a highly readable visual contrast without removing material or altering the mechanical properties of the bulk. In the ablative regime, the laser removes layers of 1-3 µm per pulse, producing reliefs or depressions with coded geometry readable by optical scanners at any angle of illumination.

The result is a marking integrated into the structure of the material, biocompatible by definition since it is composed exclusively of the base alloy elements, resistant to temperature, vapor and chemicals with the same durability as the component.

Process Physics: Fiber vs. UV, When to Use Which Source.

The choice of laser source is not stylistic but depends on the optical and thermal properties of the substrate, dimensional requirements, and the final application.

For the vast majority of commercially pure titanium (Gr2, Gr4) or Ti-6Al-4V alloy implants, the pulsed fiber laser with 1064 nm wavelength represents the operational optimum: high absorption on metal, marking speed compatible with mass production (up to 3,000 components/shift for small screws), low operating cost due to the absence of optical consumables. The 355 nm UV system becomes preferable when marking components made of PEEK, zirconia, or thermoplastic polymers used in dental prostheses and surgical guides: the short wavelength allows cold photonic ablation with HAZ less than 5 µm, eliminating any risk of thermal degradation of polymer matrices.

Technical Challenges: Biocompatibility, Micro-cracks, and Readability on Complex Surfaces

Laser marking on medical devices introduces three orders of technical challenges that require a rigorous parametric approach, different from that applied in other industries.

Maintaining the biocompatibility of titanium

Titanium derives its biocompatibility from the passive TiO₂ layer that naturally forms on the surface. A non-optimized laser process can locally alter the crystal structure of this layer, introducing nonstoichiometric phases that reduce corrosion resistance in a physiological environment. The correct parameterization involves power densities between 10⁸ and 10⁹ W/cm² with pulse widths between 20 and 100 ns, so as to operate in the regime of controlled oxidation rather than deep ablation. Post-process XPS verifications confirm the exclusive presence of TiO₂ rutile in the surface layer when the parameters are properly calibrated.

Control of micro-cracks

The risk of micro-cracks-absent in laser anodization regime, present in poorly calibrated deep ablation-is monitored by cross-sectional metallographic inspection with atomic force microscope (AFM) or SEM. In our experience with implant manufacturers, the most popular acceptance criterion involves sub-surface thermal alteration depths of less than 10 µm and no detectable cracks at 500x. This is achieved by optimizing the combination of repetition frequency (20-100 kHz) and pulse overlap (50-70%).

Readability on curved and small surfaces

Abutments and cover screws have cylindrical geometries with diameters between 1.8 and 6 mm. On these surfaces, the laser focus varies along the axial direction of the component, producing variations in energy density that result in contrast unevenness. The technical solution is twofold: use of telecentric F-theta optics with focal lengths appropriate to the working range, combined with motorized rotating mounts that develop the cylindrical surface during marking. This allows DataMatrix Grade A (ANSI/AIM DPM) quality to be achieved even on 0.25 mm modules on surfaces with curvature up to 90°.

Typical Workflow: from Data Definition to Metrological Validation.

A laser marking process that is GMP (Good Manufacturing Practices) compliant and traceable according to ISO 13485 consists of sequential steps with documented checkpoints. The diagram below illustrates the standard flow for an implantable device manufacturer.

Key to this process isMES-laser integration: the marking system does not operate as an autonomous island but receives data directly from production management, eliminates the risk of manual transcription errors and ensures consistency between what is physically marked and what is recorded in the traceability database. Systems such as our FlyMark are natively designed for this integration, with OPC-UA, Profinet and REST API communication protocols that enable dialogue with the main MESs found in medical device factories.

Clinical Applications: Implants, Rotating Instruments and Dental Laboratories

The application landscape of laser marking in dentistry is broader than implantology alone would suggest. Three areas deserve specific analysis.

Manufacturers of implants and prosthetic components

For osseointegrated implants, abutments and cover screws, fiber laser marking in an anodized regime is the standard process. Small screws (diameter 1.8-3.5 mm, length 6-16 mm) are marked in multi-position fixtures at rates of 200-600 pieces/hour depending on code complexity and line configuration. The surface quality of the implant is not altered: surfactant tests and Ra roughness analysis on SLA- and RBM-treated surfaces confirm that laser marking confined to the smooth cervical zone does not change the roughness profile of the osseointegrative zones.

Reusable rotary instruments

AISI 440C or HSS stainless steel burs, rasps, chisels, and NiTi endodontic files represent a category with different specifications: harder materials, often helical geometries, and mandatory instrument traceability throughout the cycle of use in the clinic. On these components, the fiber laser operates in controlled ablative mode, producing negative markings (reliefs within protected cavities) to preserve readability even after aggressive mechanical cleaning. Typical ablation depth is 5-15 µm with tract widths of 30-50 µm.

Dental laboratories and clinics

One growing segment involves the marking of custom prosthetic artifacts: zirconia (Y-TZP) crowns, milled titanium milling bars, and stereolithographed resin models destined for long-term archives. In these operating environments-often laboratories with small floor areas and non-automation trained staff-the answer is compact Benchtop laser systems with integrated safety enclosure, Class 1 laser classification in use, and simplified operator interface. Our approach with customers in this segment involves systems with a footprint of less than 0.5 m² and an operational learning cycle of less than 2 hours, while maintaining full compatibility with the export formats of major dental CAD/CAM software (3Shape, exocad, Dental Wings).

Final Considerations

Permanent laser marking has become an infrastructural requirement for any manufacturer operating in the dental medical device market. It is not just one technological choice among other equivalents: MDR 2017/745 and FDA regulations define durability and legibility requirements that only physical modification of the surface-not the application of external material-can verifiably ensure throughout the life cycle of the device.

Source selection (1064 nm fiber vs. UV 355 nm), process parameterization, and integration into the MES production flow are not implementation details-they are the factors that determine the difference between a marking that passes validation on the first try and a process that requires months of iteration. Investment in proper process design-from substrate analysis to qualification according to ISO 13485 to UDI data management-returns measurable value in reduced audit time, elimination of rework, and building a robust technical dossier.

The post Laser Marking for the Dental Sector: Traceability, UDI and Biocompatibility on Implants, Abutments and Rotating Instruments appeared first on LASIT - Laser marking.

This guide is designed for process engineers, quality managers and manufacturing decision-makers who must navigate a landscape of solutions that are often presented in a biased manner. The goal is to provide a rigorous technical framework: to define precisely what a surface treatment is, to explain its measurable benefits, to describe the criteria for choosing the most suitable method, and to present with honesty the advantages and limitations of each technology-with a focus on laser processes, which today represent the state of the art for numerous applications in automotive, electronics, medical, and aerospace.

Superficial Treatment vs. Simple Cleaning

Cleaning a surface means removing external contaminants-oils, dust, processing residues-without altering its microscopic structure. Surface treatment, on the other hand, intentionally changes the chemical composition, morphology or crystal structure of the outermost layers of the material to give it functional properties that the base material does not possess, or does not possess sufficiently.

The distinction is critical in process design. A simple solvent decontamination prepares the surface but does not alter its contact angle or surface tension; a plasma treatment or low-frequency laser weaving, on the other hand, can bring the contact angle of water on aluminum from more than 70° to values of less than 10°, radically altering the adhesion of paints, structural adhesives or functional coatings. Similarly, a laser hardening process removes nothing: it hardens the surface area through a rapid localized heat cycle, bringing the hardness of a 200 HV machining steel to values above 700 HV without distorting the part.

In summary: cleanliness is a precondition; surface treatment is a functional transformation with measurable and verifiable goals.

Key Benefits with Examples from Industry

Improved adhesion of coatings and adhesives

In structural bonding processes-essential in EV battery assembly, multi-material body panels, and carbon fiber aerospace components-the strength of the joint depends critically on the surface energy of the substrate. An untreated stainless steel has a surface tension around 30-40 mN/m; after laser or plasma treatment the same surface can reach 70-80 mN/m, with increases in the tensile strength of the bonded joint of as much as 40-60% compared to the as-machined condition.

In the automotive industry, several European OEMs apply laser texturing to the attachment flanges of aluminum components before applying structural primers, eliminating manual sandblasting and reducing process variability.

Resistance to corrosion and wear and tear

The service life of H13 steel die casting dies, HSS cutting tools, or hardened and tempered steel sprockets depends directly on surface resistance to abrasive wear and thermal fatigue. Processes such as laser cladding and laser hardening enable surface layers with hardnesses above 60 HRC without compromising core toughness. In precision hydraulic components, laser texturing on seal surfaces reduces the coefficient of friction by up to 30 percent and extends the seal replacement cycle.

Controlled cleaning and decontamination

The Laser cleaning has replaced chemical blasting in numerous applications where chemical contamination of the substrate is unacceptable: removal of oxides from joints before welding in industries such as nuclear or aerospace, decontamination of titanium surfaces before electroplating treatments, preparation of sealing surfaces in high-pressure hydraulic systems. The advantage over chemical methods is the total absence of secondary residues to be treated as special waste.

Aesthetics and industrial branding

Permanent marking-DataMatrix codes, serial numbers, logos-is technically a controlled surface treatment: it selectively alters the surface layer to create optical or tactile contrast. On aesthetic stainless steel components for the food or healthcare industry, laser marking produces blackening without removal of material, keeping intact the continuity of the passive film and thus corrosion resistance according to ISO 9916.

How to Choose the Right Method

There is no universally superior surface treatment. The optimal choice emerges from the intersection of four variables: the material to be treated, the functional properties required, the constraints of integration into the production flow, and environmental and regulatory limitations.

Material type and compatibility

Each method interacts with the substrate in a specific physicochemical way. Plasma is particularly effective on polymers and composites, but can be invasive on thin-walled aluminum alloys. Anodizing is exclusive to aluminum and its alloys. Laser is the method with the widest range of material compatibility: it works on ferrous and nonferrous metals, ceramics, polymers, composites, and nickel alloys at high temperatures, matching wavelength, pulse duration, and energy density to the optical and thermal response of the material.

Required functional properties

A distinction must be made between surface properties of adhesion (contact angle, surface energy), mechanical (hardness, fatigue strength), tribological (friction, wear), optical (absorbance, reflectance), and identification (contrast, code readability). A laser hardening process optimizes mechanical properties but does not change visual appearance; a laser marking process produces optical contrast but does not alter hardness. Clarity of the functional objective is the first decision-making step.

Integration into the production process

Cycle speed is often the most stringent constraint in OEM environments. A fully automated laser cleaning or laser texturing system, integrated in-line on a 6-axis robot with automatic tool changer, can process complex surfaces in 10 to 30 seconds without flow interruption. Wet processes such as chemical pickling or anodizing, on the other hand, require dedicated stations, treatment tanks, suction facilities and effluent disposal, with lead times of 30-120 minutes per batch.

Environmental and regulatory constraints

The European REACH directive and RoHS regulation restrict or ban many chemical compounds traditionally used in surface treatment: hexavalent chromium, hydrofluoric acid, chlorinated solvents. Laser technologies natively comply with these requirements, employing no chemical solutions and producing only metal fumes that can be managed with dry filtration systems certified to EN 60335-2-69.

Overview of the Main Methods: Advantages and Limitations

Laser Cleaning

Laser ablation removes contaminants-oxides, coatings, lubricants-through photonic evaporation of the unwanted surface layer, without mechanical contact and without chemical reagents. Selectivity is controlled by fluence density (typically 0.1-5 J/cm²): layers of 1-10 µm oxide can be removed from stainless steel while preserving the substrate to tolerances of less than 1 µm. Ideal for pre-weld preparation, pre-gluing, mold restoration.

Laser Texturing

By means of ultrashort pulses (femtosecond or picosecond), it is possible to structure the surface with controlled sub-millimeter geometries-pyramids, channels, LIPSS structures-to engineer the contact angle, reduce friction, increase the adhesion area, or impart hydrophobic/hydrophilic properties. Obtainable textures have pitches between 1 and 500 µm with depths from 0.5 to 50 µm, with positional repeatability ±2 µm.

Laser Hardening

The laser heats the surface zone of carbon steels and alloy steels above austenitizing temperature (typically 900-1100 °C) in times on the order of milliseconds; rapid cooling by conduction to the cold core produces martensite, with hardness increases of 3× to 4× over the starting material. The depth of hardening is controllable between 0.2 and 2.5 mm. No risk of geometric distortion due to localized heat input.

Laser Cladding

Deposition of metal powders or composite alloys (Stellite, Inconel, WC-Co) using a laser beam that simultaneously fuses the powder feed and a thin area of the substrate, creating a metallurgical bond without an adhesion interface. The porosity of the deposit is typically less than 0.5 percent, and the achievable hardness exceeds 60 HRC. Main use: mold repair, protection of components subject to extreme wear, anti-wear coatings in stainless steel.

Other common industrial methods

The following table summarizes the operational characteristics of the main non-laser methods to enable objective comparison during technology selection.

Laser Treatments: Precision, Flexibility and Eco-Compatibility.

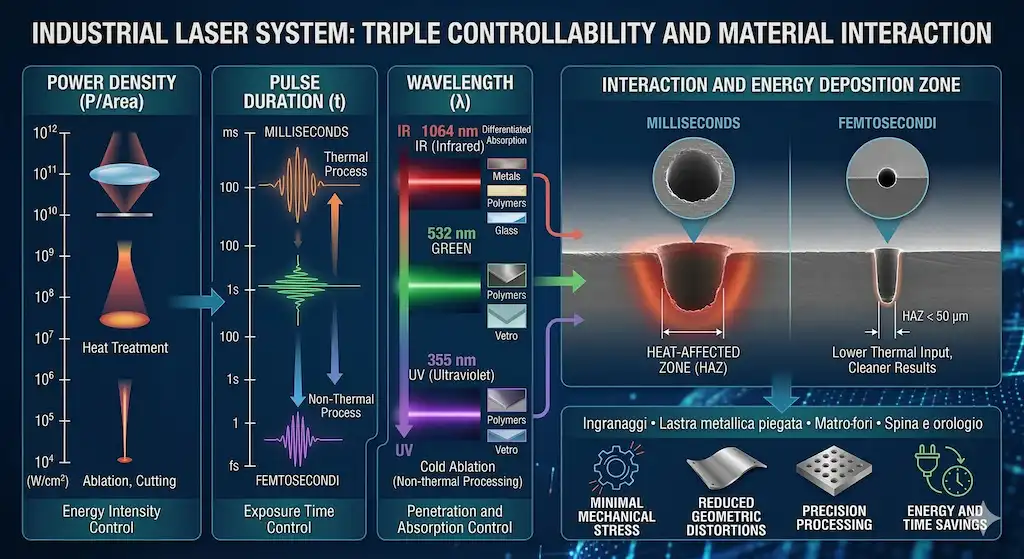

Today, lasers are the only technology that can natively cover the full spectrum of industrial surface treatments-cleaning, weaving, curing, deposition, marking-with a single software-reconfigurable hardware platform. This versatility is not a business argument: it is a direct consequence of the physics of the process.

The physical advantage: controlled energy with spatial and temporal resolution

An industrial laser system delivers energy in a defined volume with three simultaneous degrees of freedom: power density (10⁴ to 10¹² W/cm²), pulse duration (milliseconds for hardening to femtoseconds for cold processing) and wavelength (typically 355 nm UV, 532 nm green, 1064 nm IR). This triple controllability allows energy to be deposited exactly where it is needed-with heat altered zones (HAZs) of less than 50 µm in femtosecond processes-while minimizing mechanical stresses and geometric distortions.

Integration in Industry 4.0 and automated production

Modern laser systems natively integrate into automated production flows. Our experience with automotive and electronics manufacturing customers shows that systems such as LASIT FlyMARK and LASIT Powermark consistently achieve OEE values in excess of 98 percent due to the absence of consumables, predictive maintenance, and full compatibility with industrial communication protocols (OPC-UA, EtherNet/IP, PROFINET).

Process traceability is another structural strength: every laser parameter-power, speed, frequency, number of passes-is recordable and archivable for each individual processed component, making the system fully compliant with the audit requirements of IATF 16949 and ISO 13485 without additional infrastructure.

Verifiable environmental sustainability

Unlike wet processes, laser treatment does not generate liquid effluents, does not require process tanks, and does not use acids or regulated solvents. The only by-products are metal fumes and fine particulates, which can be managed with EN 60335-2-69-certified filter extractors and HEPA filters. In terms of energy consumption, a 100 W laser system with fiber source operates with a wall-plug efficiency of more than 30 percent, significantly higher than induction furnaces or galvanic processes per unit area treated.

Operational Conclusions

The choice of the most suitable surface treatment is never reducible to a single criterion. It requires a systematic evaluation of the material, objective functional properties, manufacturing integration constraints, and applicable regulations. Within this framework, laser technologies are distinguished by their breadth of application scope, process controllability, and consistency with the sustainability and traceability goals required by modern industry.

For companies operating in industries with stringent regulations-automotive(IATF 16949), medical(ISO 13485, UDI), aerospace(AS9100)-the ability to document every process parameter and ensure repeatability on every single component is a real competitive advantage, not just a technical feature.

LASIT supports its customers in defining the optimal process through laboratory application testing, surface analysis with 3D profilometry and XPS spectroscopy, and custom automated cell design. Our 30 years of experience in industrial lasers is the foundation on which we build solutions that work from the first production run, not the third attempt.

The post Surface treatments of industrial metals appeared first on LASIT - Laser marking.

The international aerospace-specific AS9100 standard and traceability requirements established by the U.S. Department of Defense through MIL-STD-130 define stringent parameters for the permanent identification of parts. The Federal Aviation Administration (FAA) enforces and verifies compliance with these standards through its aviation production and maintenance regulations, ensuring that every part intended for civil and commercial aviation is uniquely traceable. Laser technology has emerged as the most reliable solution to meet these requirements, offering permanent, legible markings that can withstand the harshest operating conditions.

Normative Standards: AS9100, MIL-STD-130 and Unique Identification

The AS9100 standard extends ISO 9001 requirements by introducing more stringent controls on quality management in aerospace. In the context of marking, AS9100 requires that identification processes ensure permanent legibility, resistance to extreme environmental conditions, and absence of alterations that could compromise the structural integrity of the component. These criteria exclude many traditional marking technologies, such as adhesive labels or mechanical stamping, which do not offer sufficient assurance of durability.

MIL-STD-130, a U.S. Department of Defense standard, introduces the concept of Unique Identification (UID), a unique identification system that accompanies each critical component throughout its operational life cycle. UID requires the marking of high-density two-dimensional codes, typically datamatrix conforming to Item Unique Identification (IUID) standards, that contain information structured according to defined formats. Laser marking is the prevailing technology for applying UID codes, ensuring the required permanence and readability even after decades of service under severe operating conditions.

The FAA, through its Part 21 and Part 145 regulations, verifies that manufacturing and maintenance processes meet these traceability standards. Permanent marking of identification codes, serial numbers and datamatrix is not an option, but a requirement that accompanies every part intended for civil aviation. Compliance is verified during inspections and audits, with a focus on the permanence of markings and the absence of process-induced structural alterations.

Lasers emerge as a preferred technology because they create markings embedded in the material itself, impossible to remove accidentally and able to withstand high temperatures, vibration, fluid exposure and repeated thermal cycling. Compliance with standards is therefore not a matter of simply affixing a code, but of choosing the correct technology and process parameters.

Laser Marking Technologies for Aerospace Materials

The aerospace industry uses a narrow but extremely demanding range of materials, selected for their mechanical, thermal and corrosion resistance properties. Titanium, aircraft aluminum alloys, high-strength stainless steels, and nickel-based superalloys make up most of the substrates to be marked. Each material requires a specific approach to achieve compliant markings without compromising its structural characteristics.

Annealing (laser annealing) represents the most conservative technique and is particularly suitable for components subjected to high mechanical stresses. The process involves localized and controlled heating of the material, which generates a permanent color change without removal of matter. This feature is critical for turbine blades, drive shafts, and parts subject to cyclic fatigue, where even microscopic surface alterations could trigger cracks or reduce long-term strength. Laser annealing creates optimal visual contrast while maintaining the original surface finish and preserving any protective treatments. Standards such as ASTM F3001 provide specific guidelines for evaluating the impact of markings on critical aerospace components.

Engraving (deep engraving) finds application when greater wear resistance is needed or when operating conditions involve abrasion or frequent mechanical contact. The laser removes material by creating a groove of controlled depth, generally between 20 and 100 microns depending on the application. This technique is commonly used on aluminum structural components, critical hardware, and landing gear parts. The depth of the engraving must be carefully evaluated according to SAE specification AMS-STD-2175, which defines requirements for permanent markings on aerospace parts: too shallow would compromise the durability of the marking, too deep could create stress concentration points.

Etching (surface ablation) represents a compromise between annealing and engraving, removing a very thin layer of material to create visual contrast without significant alteration of surface geometry. This technique is particularly effective on surface-treated stainless steels and alloys, where controlled removal of a few microns generates high-contrast markings while maintaining the integrity of the underlying protective treatments.

Selection of the appropriate technique must consider not only the base material, but also the specific certification requirements of NADCAP (National Aerospace and Defense Contractors Accreditation Program), which establishes rigorous criteria for marking processes used on critical aerospace components.

Critical Applications: Turbine Blades and Structural Components

Turbine blades represent one of the most demanding examples of aerospace markings. These components operate at temperatures in excess of 1000°C, experience extreme centrifugal loads, and must ensure absolute reliability for tens of thousands of hours of operation. The marking must be placed in structurally non-critical areas, typically on the blade foot, and made with parameters that do not alter the metallurgy of the material. Annealing is the preferred technique, with process controls verifying the absence of microcracks, alterations in surface hardness or changes in roughness beyond acceptable limits defined by the engine manufacturer’s specifications.

Aircraft structural components, such as wing spars, ribs, and fuselage elements, present different challenges. The surfaces to be marked are often already treated with anodizing, protective paint, or anti-corrosion treatments. Laser marking must pass through these layers without compromising their effectiveness, creating a permanent identification that remains legible even after decades of service. In many cases, engraving with calibrated parameters is used to ensure sufficient depth without weakening critical sections, meeting MIL-STD-130 requirements for UID marking.

Avionic instrumentation requires an even different approach. Sensors, electronics, and on-board instrumentation use different materials, often with stringent thermal limitations. Picosecond UV lasers are gaining ground in this area, allowing very high resolution markings on small surfaces with minimal thermal inputs. The ability to mark QR codes or datamatrix codes smaller than one square millimeter, while maintaining the optical readability required for UID machine-reading systems, is particularly valued for identifying miniaturized components.

Quality Control and Compliance Validation

Simply performing the marking is not sufficient to ensure regulatory compliance. Aerospace standards require that every process be validated, documented and repeatable. This translates into strict quality control protocols that accompany each laser marking operation, often subject to NADCAP certification for suppliers of critical components.

Process validation starts with defining the optimal laser parameters for each material and technique. Power, speed, frequency, number of passes, and focus position must be documented and maintained consistently according to procedures in accordance with SAE AS9102, the standard for first article inspection in aerospace. The marking systems used typically incorporate real-time monitoring capabilities that verify the proper execution of each marking, immediately reporting any deviations from the set parameters.

Post-marking quality control includes dimensional checks, optical readability tests according to ISO/IEC 15415 standards for datamatrix and two-dimensional codes, and metallographic inspections of process samples. For critical components, nondestructive testing such as liquid penetrant or magnetoscopy may be required to rule out laser process-induced microcracking. Complete documentation of each operation, with records of the parameters used and the checks performed, forms an integral part of the component’s technical file and is a basic requirement during AS9100 audits.

Integration with UID Tracking Systems.

Laser marking becomes truly effective when integrated into UID-compliant production and maintenance management information systems. Modern solutions combine physical marking with automatic code reading, allowing immediate entry of information into corporate databases and, when required, into government tracking systems such as the Department of Defense’s IUID Registry.

A laser-marked datamatrix on a turbine blade, when read by a machine vision system, can automatically trigger a record of installation, association with the target engine, and update of the maintenance log. The data format follows the specifications defined by MIL-STD-130, including information such as the Enterprise Identifier (EI), Serial Number (SN) and other unique identification elements.

This integration directly addresses AS9100 requirements on digital traceability, creating a conductive thread between the physical component and its documentary history. When recalls or investigations of field issues are needed, the ability to instantly trace back production lot, raw material suppliers, operators involved and controls performed is invaluable to safety management. The FAA, during compliance inspections, verifies precisely the effectiveness of these integrated traceability systems.

Future Perspectives and Regulatory Evolution

The aerospace industry is evolving toward increasingly stringent traceability requirements, with UID systems being extended to an increasing number of component categories. Laser marking will have to adapt to more complex codes containing greater amounts of information in ever smaller spaces. Ultrashort pulse laser technologies, such as picosecond and femtosecond, are emerging as a solution to mark codes with very high information density on minimal surfaces, while maintaining the optical readability required by ISO/IEC regulations and verification standards.

Integration with digital identification technologies, such as RFID and NFC, could complement but not replace visible laser marking, which retains the advantage of being readable without the need for electronic devices. The redundancy between permanent laser identification and electronic tags represents an additional layer of security in the management of critical components, which is particularly valued in the military and aerospace where the reliability of traceability systems is a priority.

The evolution of ASTM and SAE standards will continue to define acceptable parameters for new laser technologies, ensuring that technological innovation proceeds hand in hand with scientific validation and operational safety.

The post FAA Compliance and AS9100: The Strategic Role of Laser Marking in Aerospace. appeared first on LASIT - Laser marking.
